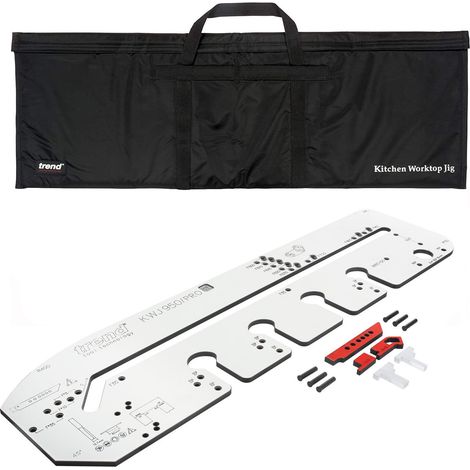

Name: Trend KWJ950/PRO 950mm Pro kitchen Worktop Jig Mitre Template + Carry Bag Case
Brand: TREND
SKU: KWJ950/PRO CASE/1001
Availability: OutOfStock

Product information

Description

General description

The Trend KWJ950/PRO is a 950mm professional multi-material worktop jig designed for routing mitre joints in laminated, timber, and compact laminate surfaces. It features innovative front edge alignment technology, making it ideal for scribed, out-of-square, and non-standard worktops.

Technical specifications

Length: 1260 mm

Width: 340 mm

Thickness: 12 mm

Weight: 7.4 kg

Insets: 3 mm, 10 mm, 35 mm

Backsets: 600 mm, 610 mm, 616 mm, 620 mm, 635 mm, 700 mm, 900 mm, 950 mm

Bolt Recesses: 4

Bolt Recess Centres: 175 mm

Corner Radius: 40 mm, 100 mm

Peninsular Radius: 400 mm

Requires: Guide Bush 30 mm, Router Cutter 12.7 mm dia. x 50 mm length, Plunge Router, 1/2 inch F-Clamps min.

Compatibility and accessories

Compatible with standard worktop bolt sizes, including Zipbolt and Unika ‘Slimline’ connection bolts.

Works with Trend CASE/1001 Combi 1001 Carry Case, COMBI1001, COMBI1002, KWJ700, and KWJ900.

Usage

Perfect for square-edged and modern bullnose worktops.

Narrow insets provide a cleaner aesthetic, reduce cutter wear, and improve cordless router runtime.

Ideal for trapped and out-of-square installations.

Allows for accurate skimming and trimming with 90° straight cuts.

Features

Brand
TREND
Height
41.5 cm
Width
34 cm
Material
Wood
Weight
7400 g
Mitre box type
Classic
ManoMano Reference
ME95969826
MMID
678936615358
Product code
KWJ950/PRO CASE/1001
EAN
5056709532408
