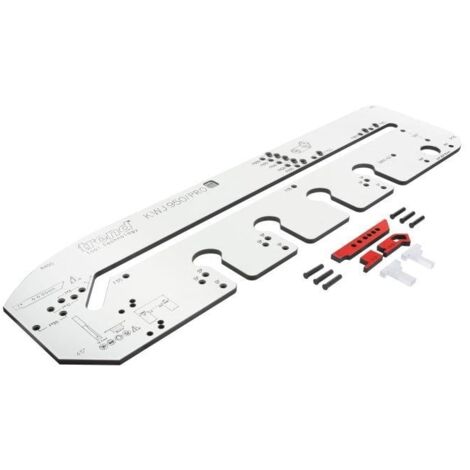

Trend KWJ950/PRO 950mm Pro Multi-Material Kitchen Worktop Jig Mitre Template

KWJ950/PRO - 950mm Professional Multi-Material Worktop Jig
A universal worktop jig for routing mitre joints in laminated, timber and compact laminate surfaces. Features 3mm, 10mm and 35mm inset options, and innovative front edge alignment technology for scribed, out-of-square and non-standard worktops.

Front Edge Alignment Technology* accurately positions the jig directly to the start of the mitre joint to accommodate any worktop width.
Narrow Inset T-Gauges create 3mm and 10mm insets quickly and easily. Perfect for square-edged and modern bullnose worktops; narrow insets give a cleaner aesthetic, prevent cutter wear, and improve cordless router runtime.
Male Cut-Line Positioning Devices* allow the jig to be positioned directly to the male cut line and remove the need for complex length, angle and offset calculations. Ideal for trapped and out-of-square installations.
Preset Connector Bolt Recesses accommodate all standard worktop bolt sizes, including Zipbolt and Unika ‘Slimline’ connection bolts.
Indexed Backsets for 600, 610, 616, 620, 635, 700, 900 and 950mm worktops for standard 90º installations.
400mm Radius for breakfast bar and peninsula trimming.
R100mm, R40mm and 45° Corners for edge finishing.
90° Straight Cuts for accurate skimming and trimming.
35mm Hinge / ¾” BSP Recess for surface-mount monobloc tap and concealed hinge installation.

Length 1260 mm
Width 340 mm
Thickness 12 mm
Weight 7.4 kg
Insets 3/10/35 mm
Backsets 600/610/616/620/635/700/900/950 mm
Bolt Recesses 4
Bolt Recess Centres 175 mm
Corner Radius 40/100 mm
Peninsular Radius 400 mm

Requires:
Guide Bush 30 mm
Router Cutter 12.7mm dia. x 50 mm length
Plunge Router 1/2inch
F-Clamps min. 80 mm throat x 2
