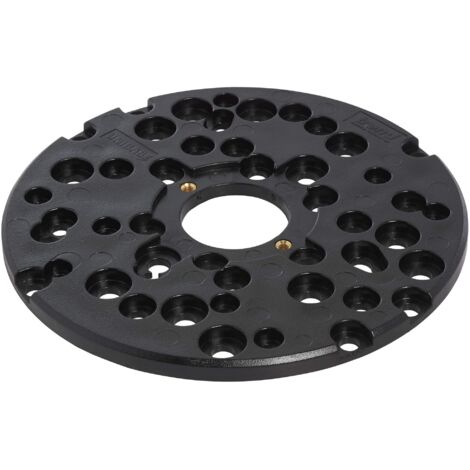

Universal Sub Base C/w Pins & Bush

Trend UNIBASE - Router base adaptor. The Unibase enables routers with non-standard guide bush fittings to accept the range of Trend guide bushes. Will fit directly to most routers. Including brands such as Makita, Dewalt, Festool, Bosch and Milwaukee.
Line-up pin used with a 16 mm plastic bush to ensure concentricity of the cutter to the guide bush when fitting the sub-base. Suits collet sizes 1/4inch, 8mm, 12 mm and 1/2inch.
Instructions for fitting
The line-up pin fit into the collet and is plunged through the router base. The line-up bush is fitted into the Unibase and secured. This is then placed over the line-up pin and rotated in order to line up the fixing holes. The Unibase screws are tightened and then the line-up bush can be replaced with any choice of Trend guide bushes. These range from 10 mm up to 30 mm (GB10 - GB32). For larger diameter cutters a 40 mm guide bush (GB40) is available.Ideal for hinge jig and lock jig Diameter 170 mm
Thickness 8 mm
Bore 39 mm
Recess 60 mm
Screw thread 2BA Some of the popular models this UNIBASE will fit include  Trend CT4 T5 T10 T11 T7Bosch POF600ACE GOF1300ACE > 2003 GOF900 > 2003 POF1400ACEDewalt DW613 DW614 DW615 DW620 DW621 DW625EK DW629 D26203 D52504K (Plunge Base Only) DCW604NT
Makita 3612 3612C RP2300FC RP2301FCX RP1801X RP0900 M3601 DRT50ZX3 DRT50ZX2 DRT50Z DRT50ZJ (Plunge Base Only) RT0700CX2
Festool OF2000(E) OF1010EBC
Freud FT3000VCE
GMC GER 1800W
Hikoki M12VE M8V2
Katsu 101749 (Plunge Base Only)
Perles OF3 OF9E Tacklife PTR01A
Erbauer ERB380ROU ERB381ROUCasals CT300VCEVonhaus 1600WWorx WX15RT
