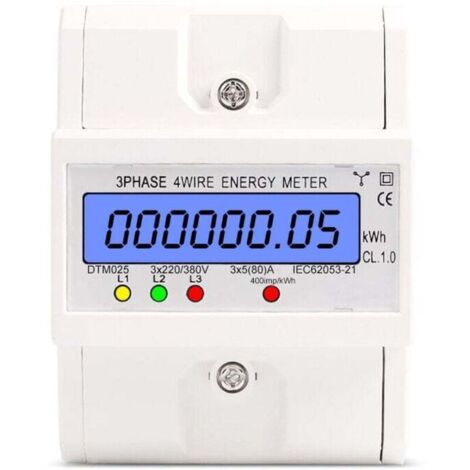

Trifasico digital energy meter, digital electric grid meter DIN, 3 x 220 V, 4 wires, 4P (5(30) A) (trifasico 220 V, 4 wires, 4P)
Of which environmental contribution £0.01 including VAT.
Sold by LinzGain Sarl
You may also like
Compare with similar items
Product information
Description
- Installation in DIN standard 35 mm, conforms to DIN EN50022.
- This three-module measuring gauge with transparent cover, is widely used in power systems. submedication.
- Standard configuration: 6+2 digits panel while registering motor pulses step by step.
- This DIN power meter is based on a retro-illuminated LCD panel.
- This three-phase power meter offers good protection against interference electromagnetics, low energy consumption, high precision, high load capacity, high stability and long life useful.
This DIN power meter is equipped with a retro-illuminated LCD panel.
This power meter offers good protection against electromagnetic interference, low power consumption, high accuracy. High capacity, high stability and long life useful.
Specifications:
Model: DTM025
Precision: Class 1
Voltage: 3 x 220 V / 380 V
Corriente: 5 (30) A
Connection rate: AC voltage 4 kV for 1 minute, pulse voltage 1.2/50 µs, waveform 6 kV
Tamaño: as shown in the image
Weight: 412 g
Package included:
1 DIN electric meter; 1 manual (English)
Features
- BrandSNQ
- Amperage1 A
- Control functionNo
- Height1 cm
- Width1 cm
- MaterialPlastic
- Type of electrical installationDIN rail
- Number of phase(s)Three-phase
- Voltage380 V
- Meter typeElectricity
- ManoMano ReferenceME96145121
- MMID518744144544
- Product codeFD-32095
- EAN6032223939526
