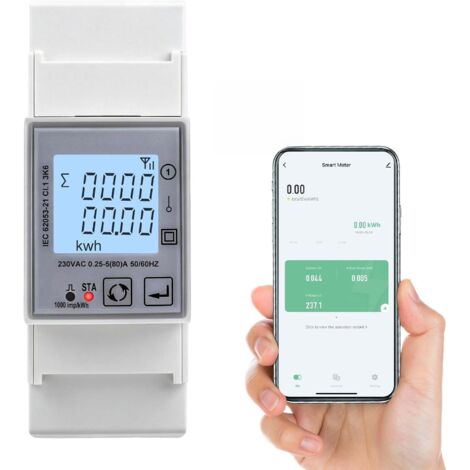

Tuya WiFi Electricity Meter, 80A Connected Electric Meter, Single-Phase AC230V Energy Meter, 1000 imp/kWh, Power Measurement, LCD Display, Overvoltage and Overcurrent Protection, DAC2120C
Sold by HYPERDROP
You may also like
Compare with similar items
Product information
Description
【Smart Monitoring】: This WIFI electric meter, using the "Tuya" or "Smart Life" app (2.4 GHz Wi-Fi), allows users to track their total electricity consumption in real time and view detailed hourly, daily, monthly, and yearly statistics to stay informed about their energy use. 【Multi-Parameter Measurement】: This smart connected energy meter is suitable for AC circuits with a maximum current of 80A and can simultaneously measure numerous parameters such as total active electrical energy, voltage, current, active power, power factor, frequency, etc. With the touch keys, you can easily preview various parameters.
【LCD Screen】: Smart electricity meters are equipped with a backlit LCD screen that clearly displays measurements and data, even in dimly lit environments.
【Easy Installation】: The Wi-Fi energy meter is designed with a standard dual-mode width and a compact structure for installation on a standard 35mm DIN rail, seamlessly integrating into the control cabinet or distribution box.
【Wide Range of Applications】: The single-phase Wi-Fi electricity meter with overvoltage and overcurrent protection ensures the safety of your electricity consumption. It can be widely used for measuring electrical systems in schools, homes, markets, laboratories, and other locations.
【LCD Screen】: Smart electricity meters are equipped with a backlit LCD screen that clearly displays measurements and data, even in dimly lit environments.
【Easy Installation】: The Wi-Fi energy meter is designed with a standard dual-mode width and a compact structure for installation on a standard 35mm DIN rail, seamlessly integrating into the control cabinet or distribution box.
【Wide Range of Applications】: The single-phase Wi-Fi electricity meter with overvoltage and overcurrent protection ensures the safety of your electricity consumption. It can be widely used for measuring electrical systems in schools, homes, markets, laboratories, and other locations.
Specifications:
Material: ABS
Poles: 2P
Rated Voltage: 230V AC
Rated Current: 5A
Maximum Current: 80A
Rated Frequency: 50/60 Hz
Pulse Constant: 1000 imp/kWh
Communication Protocol: TUYA or Smart Life
WiFi Frequency: 2.4 GHz
Display: Backlit LCD screen
Energy Measurement Range: 0 to 999,999.999 kWh
Operating Temperature: -25°C to 70°C °C
Product dimensions: 100 × 65 × 36 mm
Package includes:
1 × AC WIFI electric meter
1 × instruction manual (in English)
Features
- BrandREDROAD
- Amperage2 A
- Photovoltaic / renewable production compatibilityYes
- ConnectivityWifi
- Control functionYes
- Width10 cm
- MaterialAcrylonitrile butadiene styrene (ABS)
- Type of electrical installationDIN rail
- Number of analog inputs/outputs1
- Number of phase(s)Single-phase
- Number of outlets1
- Number of area(s)1
- Certified billing supportYes
- Voltage230 V
- Meter typeElectricity
- ManoMano ReferenceME102511448
- MMID869886933646
- Product codeHD129C-26032868
