Ugreat – Single-phase electronic energy meter 220-250V – Max current 80A – Power 17,000W – Backlit LCD display on DIN rail
Sold by AINSCO
You may also like
Compare with similar items
Product information
Description
General Description

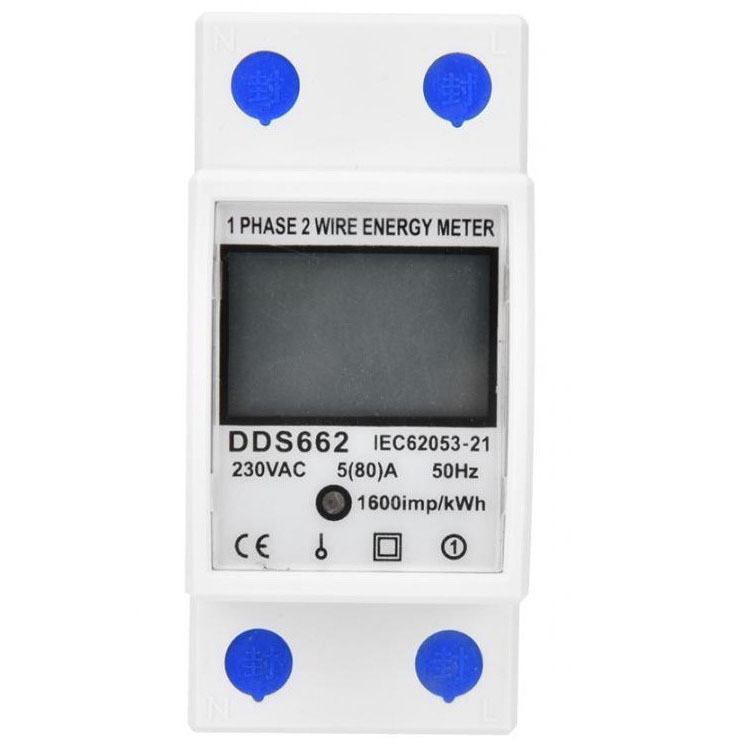

DDS662 single-phase electronic energy meter with backlit LCD digital display, designed to measure energy, voltage, current and power. It is mounted on a 35 mm DIN rail and is ideal for use in home or professional environments.Technical Specifications
- Model: DDS662
- Material: Plastic
- Accuracy: First class
- Reference Voltage: 220 V/230 V 50/60 Hz
- Reference Current (Max. Current): 5 (80) A
- Insulating Properties: AC Voltage 1 min 4 kV, Pulse Voltage 1.2/50 µs Waveform 6 kV
- Display: LCD Backlight
- Installation: 35 mm DIN rail
- Wiring Method: High-output and low-input / High-input and low-output
- Power: 17,000 W
- Ambient Temperature: -20°C to +50°C
- Pole Width: 17.5 mm / 0.7 in
- Package Size: Approx. 8.6 * 4.2 * 7.2 cm / 3.4 * 1.7 * 2.8 in
- Voltage: 200-250 VAC
- Current: 0.1-80 A
- Energy: 0.1-99999.9 kWh
- Power: 0.1-17000 W
Other Information
Features
- BrandUGREAT
- Amperage80 A
- NF certificationNF220
- Accuracy classClass 1.0
- Control functionNo
- Height6.6 cm
- Width3.7 cm
- MaterialPlastic
- Type of electrical installationDIN rail
- Number of modules1
- Number of phase(s)Single-phase
- Weight200 g
- Voltage220 V
- Meter typeElectricity
- ManoMano ReferenceME88114604
- MMID981968804771
- Product codeTTY00038
- EAN9411682595134
