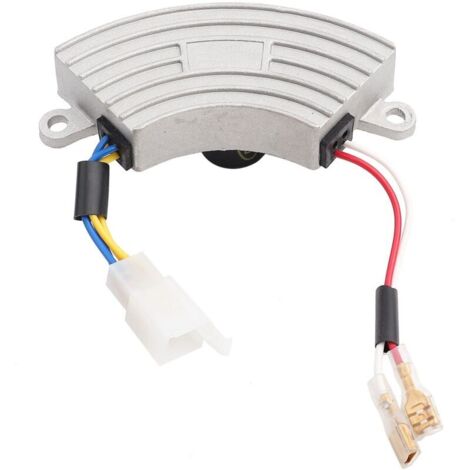

Universal AVR voltage regulator for 5-6.5KW 1PH 220V half-moon style diesel/gasoline generator

General Description

The universal AVR voltage regulator is designed for 5 to 6.5 KW diesel and petrol generators. This crescent-shaped device provides comprehensive protection against overvoltage, overcurrent, and short circuits, ensuring safe and stable operation.

Technical Specifications

• Item Type: AVR Voltage Regulator
• Material: Impact and Scratch Resistant ABS
• Purpose: Voltage Regulator
• Applicable Equipment: 5-6.5 KW Single-Phase Gasoline and Diesel Generator Sets
• Output Voltage: 220 V
• Harness: 6 Wires (4 Wires + 2 Carbon Brush Wires)
• Voltage Adjustment Rate: ≤ 3%
• Starting Voltage: RMS ≤ 2V
• Insulation Resistance: ≥ 500 MΩ
• Mounting Hole Distance: Approximately 140 mm

Compatibility and Accessories

• Compatible with most 5 to 6.5 kW generators
• Universal accessory for single-phase generators

Installation

To install the voltage regulator, ensure the installation hole is approximately 140 mm apart and connect the wires correctly according to the supplied diagram.

Use

The voltage regulator is used to maintain stable generator voltage, ensuring reliable and efficient operation. It is important to use it with a suitable generator to avoid damage.

Other Information

Please follow the installation instructions to ensure optimal performance of the voltage regulator.
