Universal Wireless Remote Control Switch 433MHz DC 12V 1CH RF Relay Receiver Module with 1 Transmitter, EV1527 Learn Code DIY Remote Control

Name: Universal Wireless Remote Control Switch 433MHz DC 12V 1CH RF Relay Receiver Module with 1 Transmitter, EV1527 Learn Code DIY Remote Control
Brand: COOCHEER
SKU: SPYZNB-061113
Price: 11.97 GBP
Availability: InStock

See product details

Universal Wireless Remote Control Switch 433MHz DC 12V 1CH RF Relay Receiver Module with 1 Transmitter, EV1527 Learn Code DIY Remote Control

5 options

£11.97

Quantity	Price (unit)	Discount
3 - 4	£11.61 incl. VAT	-3%
5 - 9	£11.25 incl. VAT	-6%
10+	£10.77 incl. VAT	-10%

£15 off on your 1st purchaseProfessionals, get Pro prices excl. VAT

Good to know

Discover the COOCHEER store

Sold by COOCHEER

Product details

Features

Weight
0.1 kg
Voltage
12 V
Colour
Black
Location
All rooms
Power source
Cordless
Fixing method
To screw
Range
50 m
Number of channels
1 channels
Pcs per pack
2 products
Control
Remote-control
View all

Description

【Great Design】 Switch 433 MHz RF wireless remote control. Stable and reliable performance with high sensitivity. reception level (> 97 dBm). Radio frequency signal transmission. A strong signal can pass through walls, floors, doors, signs, etc. It can be controlled à less than 50 meters away in an open area. You can control it from anywhere. remote control of each machine connected to the relay receiver via the remote control.
【Easy to use use】Extremely easy to use configure and reset. There are 4 working modes (momentary/toggle/latched/delay mode) that can be chosen. You can easily configure it yourself according to your needs. The operating mode of the product is adjustable. This element has already been used. Summer configured in locked mode.
【More flexibility】This receiver adopts a relay 10A, which can charge high-power electrical appliances to ensure stability control. à long term. There are 3 terminals (normally open, common, normally closed) for the wireless relay.
【Security Operational】The voltage of this receiver is 12V. The operation is very safe. The terminal is a loop screw, convenient and safe.
【Multiplayer control】 One receiver can store about 20 transmitters. So you can share the transmitters with your family/friends. You can control everything at once. remote the connected device to the relay receiver. And one transmitter can also control multiple receivers.
【【Safe System】The chip code is EV1527 learning code which is the most popular technology which makes the control system secure. safer distance. Other transmitters cannot control your receiver if they have not been enabled. configured with your receivers.
【Quality Assurance】High quality relays ; that can be used more than 100,000 times. Let this product last longer and be more stable. to use. The high-power terminal can withstand 15A current, so this product can have a good effect even when the current is unstable.

Product description

1201 12V Relay remote control 1 channels relay receiver with transmitter switch ON OFF

10A 1CH remote control switch 10A relay remote control DIY remote control switch

1201 Widely Used Easy to use electric door lock, alarm bell remote controller switch

Strong 433MHz RF Signal

The DieseRC RF Wireless Relay Remote Control Switch, which uses high-speed radio frequency technology 433 MHz frequency, has a strong signal that can pass through walls, floors, doors and the EV1527 learning code chip that makes the system safer. You can control each connected device. to the relay receiver via the transmitter from anywhere in the world. a reliable distance.

Easy to distance. use

Extremely easy to use configure and reset. There are 4 operating modes (momentary / toggle / latch mode / delay mode). You can easily configure it yourself according to your needs. The operating mode is adjustable. The relay has 3 ports (NC/COM/NO port). The item has already been used. Summer configured in locked mode. Press "ON" button to turn on the relay, press "OFF" button to turn off the relay.

Widely used

The products can be used in homes, farms, factories, offices, laboratories, supermarkets, etc. Wireless remote control applications range from simple household remote controls to large remote controls. automation such as electric door lock, alarm bell, access control system, electromagnetic door, lamp, lighting, ventilation device, signal transmission and DIY remote control switch, etc.

1201 10A 1 channel relay remote control receiver 10A relay reciever NC/COM/NO

Product settings

DC 12V 10A 1-channel

< span class="a-list-item">Receiver Operating voltage: DC 12V
Input voltage/ output: 1 ~ 250V
Maximum current: 10A
RF frequency: 433 MHz
Support encoding: learning code 1527</ li>
Sensitivity reception:> 97dbm
RF operation mode: ASK superhetodyne wireless reception
Operating temperature: -30 ~ +80
Range reception: The open space is more than 50 meters
Standing current: <5 MA</ span>

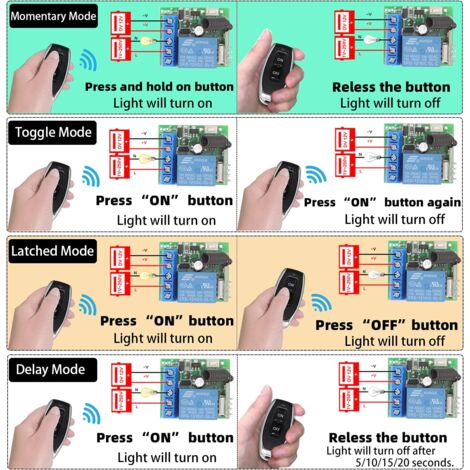

Mode momentary

Press and hold the button, the relay will turn on; Release this button, the relay will turn off.

Install

Press the learning button (on the receiver) once. Wait 3 seconds;
Press a button on the remote control. Succeed.

Toggle mode

Press the button, the relay will turn on; Press Press this button again, the relay will turn off.

Install< /span>

Press the learning button (on the receiver) twice. Wait 3 seconds;
Press a button on the remote control. Succeed.

Locked mode

Press the "ON" button, the relay will turn on; Press the "OFF" button, the relay will turn off.

Install</ u>

Press the learning button (on the receiver) 3 times. Wait 3 seconds;
Press the “ON” button on the remote control. Wait 3 seconds.
Press the “OFF” button on the remote control. Succeed.

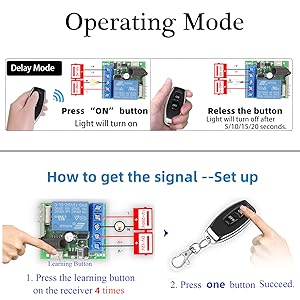

Delay mode

Press and hold the button, the relay will turn on; Release this button, the relay will turn off after 5 seconds (or 10/15/20 seconds)

Install

Press the learning button4 times (or 5/6/7 times) on the receiver. Wait 3 seconds;
Press a button on the remote control. Succeed.

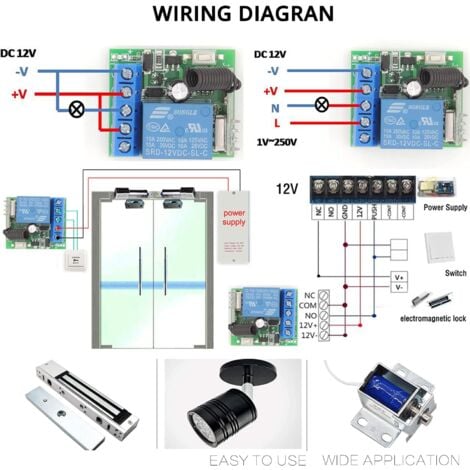

1201 wiring diagram relay remote control diagram easy to use safe remote control
