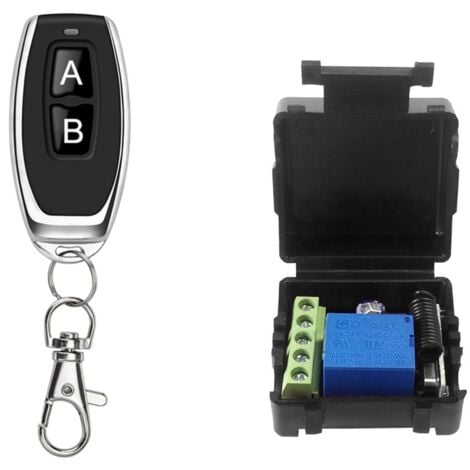

Universal Wireless Remote Control Switch DC12V 1CH Relay Receiver Module RF Transmitter 433Mhz Smart Controls

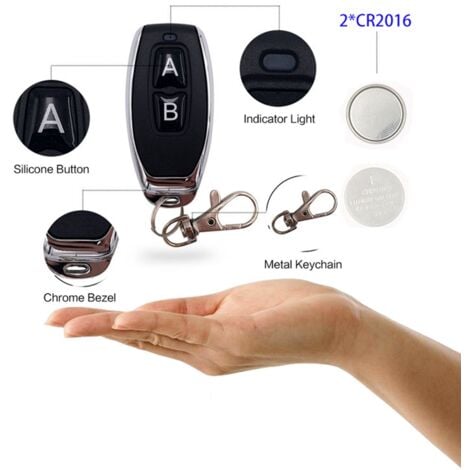

Specifications Of The Remote Control: Model Number: KT08-4
Operating RF Frequency: 433MHz. Coded System: 1527 Learning Code.
Working Voltage: DC 3V. Working Current: less than 25mA
Transmitting Power: 10mW. Wireless Operating Distance: 50m(Free Space).
Transmission Rate: 50 - 60KHz. Frequency Deviation: +0.2MHz or -0.2MHz.

Technical Data Of Receiver:

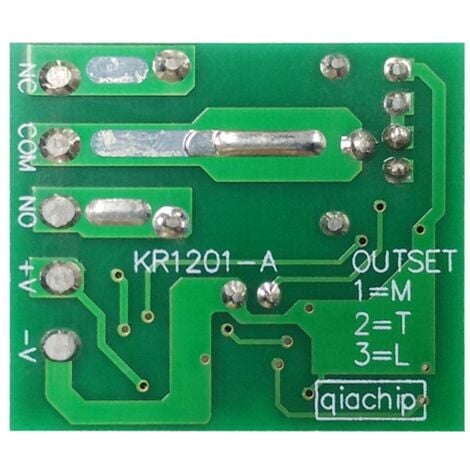

Model Number:KR1201A
Input voltage: 12V
Working current: 10A
Maximum load power: 110W
Frequency: 433Mhz
Support encoding format: EV1527
Wiring : NC COM NO
Working mode: Momentary, Toggle, Latching Time delay (5s ,10s ,15s )
Wiring diagram :
+V : 12V + input
- V: 12V - input
NO: Output , normal open
COM:Output , common
NC: Output , normal close
Wireless Communication:RF
Item Type:Switches
Switch Type:Remote Control
color:Black
Material:plastic

Package Contents:
1 x receiver switch
1 x remote control

Only the above package content, other products are not included.
Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
