Product information

Description

General description

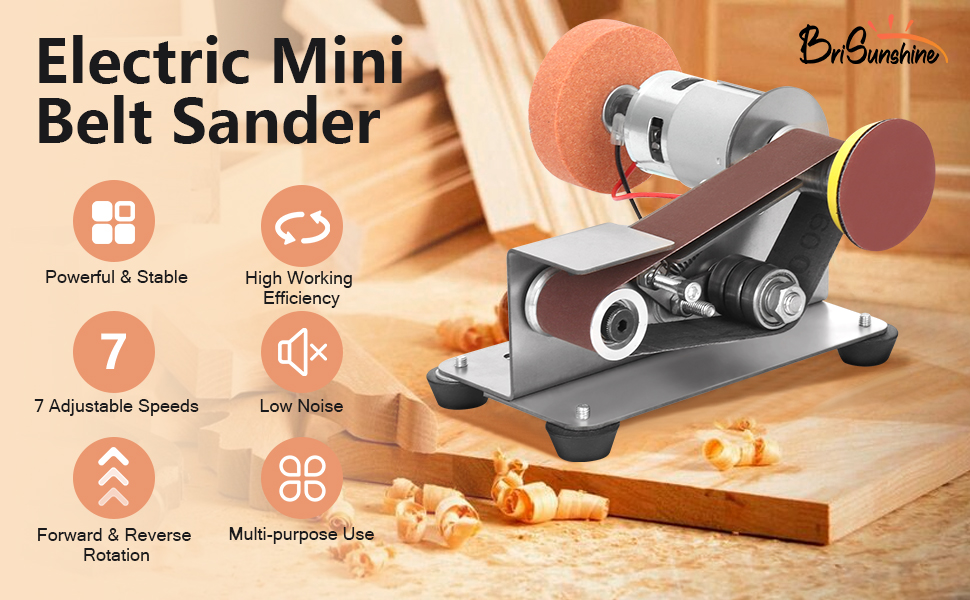

The Upgrade Mini Belt Sander is a versatile tool designed for woodworking, knife making, and metalworking. Featuring a robust stainless steel frame, it operates at adjustable speeds ranging from 4000 to 9000 RPM, making it ideal for various sanding and sharpening tasks. Its compact size (17 x 11 x 10 cm) and lightweight design (1.3 kg) enhance its usability for small DIY projects.

Technical specifications

Input Voltage: 220V-240V
Output Power Supply: 12-24V
Output Power: 96W
Sanding Belt Size: 330 x 30 mm
Speed: 4000-9000 RPM
Body Material: Stainless Steel
Product Size: 17 x 11 x 10 cm
Product Weight: 1.3 kg

Compatibility and accessories

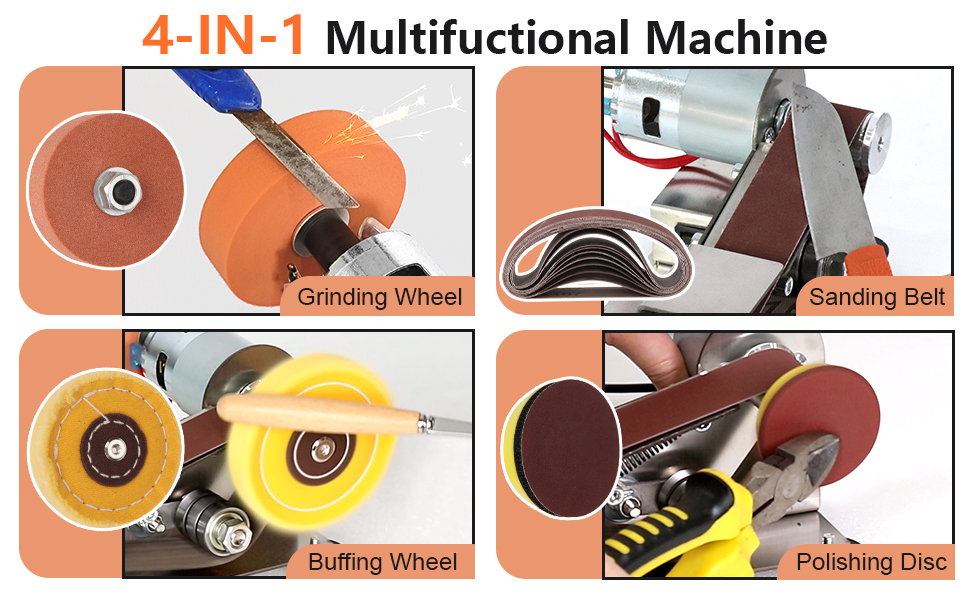

The electric knife sharpener comes with a complete accessory kit, including:

1 sanding machine
1 grinding wheel
1 buffing wheel
1 polishing wheel
1 polishing disc
20 round sandpapers
10 sanding belts
1 charger
3 hex keys
2 screws

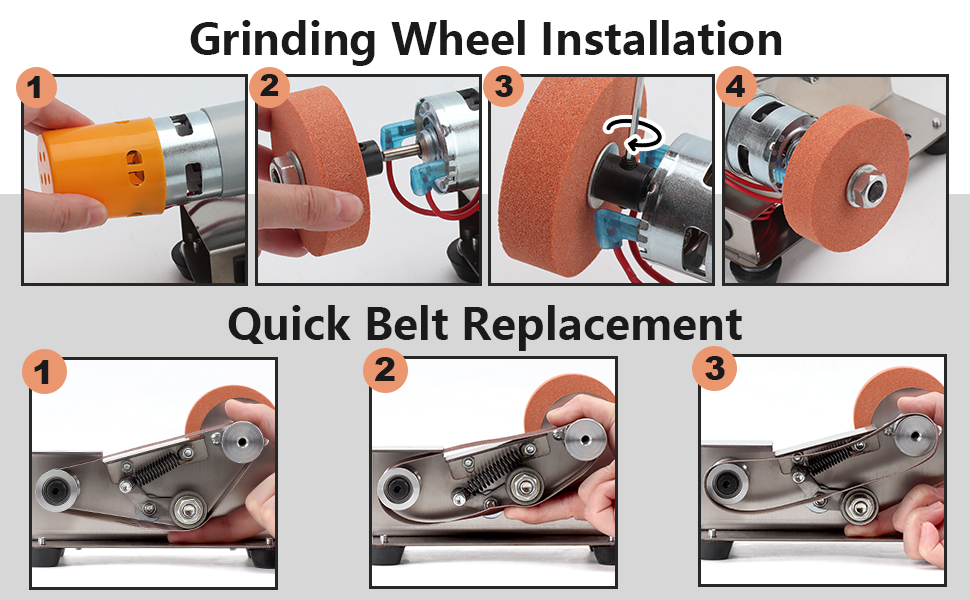

Installation

To install the grinding wheel:

Remove the motor protector.
Insert the grinding wheel.
Tighten the wheel using the provided hex wrench at both ends.
Ensure the wheel is securely tightened before powering on.

For belt replacement:

Locate the bearing beneath the sanding belt.
Adjust the bearing to loosen the belt (using additional force is recommended).
Replace it with a new abrasive belt.

Usage

This mini bench grinder supports both sanding belts and grinding wheels, making it adaptable for various applications such as DIY knife making, woodworking, metalworking, and acrylic crafting. The seven-speed adjustment feature allows users to tailor the sanding speed to their project requirements, providing precision control for intricate detailing or higher speeds for efficient material removal.
