Product information

Description

General description

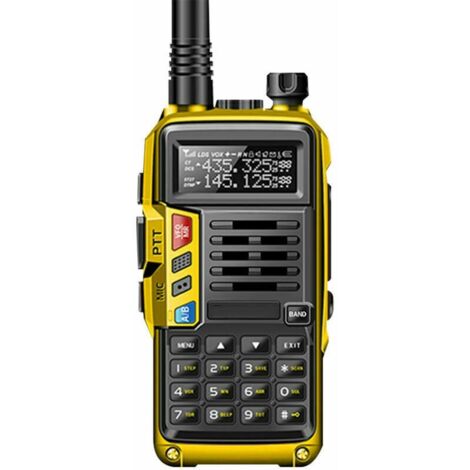

This UV-S9 10W Dual Band Portable Walkie Talkie is designed for effective communication over a range of up to 10 km. It features a VOX function for hands-free operation, making it ideal for activities such as driving or biking. The device is equipped with an LED flashlight for emergencies, an adjustable volume button, and an LED display for easy monitoring of settings.

Technical specifications

Frequency range: 136-174 MHz, 200-225 MHz, 400-520 MHz (Rx/Tx)

Memory channels: up to 128 channels

Stability frequency: 2.5 ppm

Step rate: 2.5/5/6.25/10/12.5/25 KHz

Antenna impedance voltage: 50 Ohm

Operating temperature: -20°C to 60°C

Battery voltage: lithium 7.4 V

Battery capacity: 2800 mAh

Standby consumption: ≤75 mA

Reception consumption: 380 mA

Initial consumption: ≤1.4 A

Transmitter HF power: 8 W / 1 W

Receiver voltage sensitivity: 0.2 µV (at 12 dB SINAD)

Audio output: 1000 mW

Product dimensions: 110 x 58 x 32 mm (4.33 x 2.28 x 1.26 inches)

Item weight: 130 g (4.59 oz)

Compatibility and accessories

Includes: 1 x UV-S9 Walkie Talkie

1 x Battery

1 x Power Supply

2 x Antennas

1 x Backpack

Installation

No specific installation instructions provided.

Usage

The UV-S9 walkie-talkie can be used for hands-free communication by activating the VOX function. Simply talk into the device to initiate playback without pressing the PTT button. Adjust the mute level to reduce background noise for clearer sound.

Features

Brand
MUMU
Battery capacity
2.8 Ah
Hands-free function (VOX)
Yes
Width
5.8 cm
Length
11 cm
Material
Plastic
Number of channels
128
Weight
130 g
Range
10 km
ManoMano Reference
ME93488193
MMID
213806334737
Product code
XHWD-M-XXW-3707
EAN
6196158531962

UV-S9 10W Dual Band Portable Walkie Talkie Ham Radio 2 Antennas 10km Range VOX Function 128 Channels - Yellow MUMU
