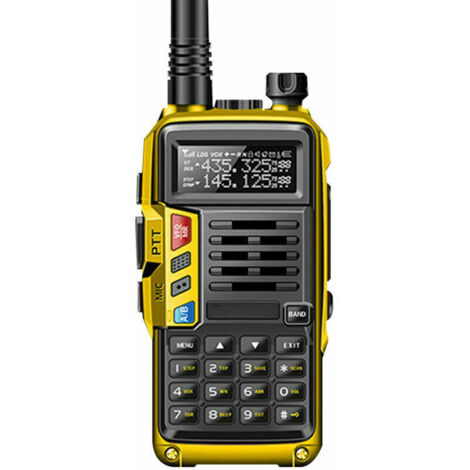

UV-S9 Dual Band Portable Walkie Talkie 10W Ham Radio 2 Antennas 10KM Long Range VOX Function 128CH - Yellow

£121.13
Of which environmental contribution £0.01 including VAT.
Sold by Sinocor GmbH

You may also like

Compare with similar items

Product information

Description

This walkie-talkie supports VOX functionality, freeing your hands while driving, cycling, etc. It features 9 levels of quiet operation and clear, smooth sound. In addition, it also provides an LED flashlight for emergency lighting, a volume button, and an LED display.



Feature:

Hands-free

Once the VOX function is activated, simply speak into the radio and it will automatically start transmitting without pressing the PTT button.



Class 9 Silencer

Adjust the silencer level to eliminate background noise and achieve a clear, smooth sound.



Humanized Design

You can turn on the LED flashlight for emergency lighting.

And with the buttons, it's convenient to quickly adjust the volume.



LED Display

Easily see which features are enabled or activated, such as the working channel, frequency, signal strength, remaining battery, etc.



Long Battery Life

The built-in 2800 mAh lithium battery and power-saving function allow for extended use.



Specification:


Frequency Range:

136-174 MHz (Receive/Transmit)

200-225 MHz (Rx/Tx)

400-520 MHz (Rx/Tx)

Memory Channels: Up to 128 channels

Frequency Stability: 2.5 ppm

Frequency Steps: 2.5/5/6.25/10/12.5/25 kHz

Antenna Impedance: 50 ohms

Operating Temperature: -20°C-60°C

Power Supply: 7.4 V rechargeable Li-ion

Battery Capacity: 2800 mAh

Standby Current: ≤75 mA

Receive Current: 380 mA

Transmit Current: ≤1.4 A

Operating Mode: Simplex or Half-Duplex

Transmitter:

RF Power: 8 W/1 W

Module Type: FM

Emission Class: 16KøF3E/11KøF3E(W/N)

Maximum Deviation: ≤±5KHz/≤±2.5KHz(W/N)

Spurious Emission: <-60dB

Receiver:

Receiver Sensitivity: 0.2 µV (at 12 dB SINAD)

Intermodulation: 60 dB

Audio Output: 1000 mW

Adjacent Channel Selectivity: 65/60dB

Size of the Product: 110* 58* 32mm/ 4.33* 2.28* 1.26in

Item Weight: 130g / 4.59oz



Package List:

1 * UV-S9 III Walkie Talkie

1 * Battery

1 * AC Adapter

2 * Antennas

1 * Lanyard

Features

  • Brand
    TEHTUY
  • Power
    1 W
  • Power source
    Manual
  • Warranty
    1 year(s)
  • Hands-free function (VOX)
    Yes
