Valve core extractor/installer – SAE 1/4 and 5/16 brass isolation valve (R12 R22 R410A)
Of which environmental contribution £0.10 including VAT.
Sold by Sinocor GmbH
You may also like
Compare with similar items
Product information
Description
General Description
Used for dismantling and installing coils in live systems, this valve core extractor/installer is ideal for quickly and easily replacing leaking coils. It is compatible with R410A, R22, and other enhanced replacement systems. Made of solid brass, this tool is durable and rust-resistant, with a metal knob featuring anti-slip knurling for extended use.Technical Specifications
- Item: Coil Removal Tool
- Service Ports: SAE 1/4" Female Thread and SAE 5/16" Male Thread
- Color: Yellow
- Material: Copper
- Kit Weight: 200 g
- Dimensions: Measurement error allowed +/- 1 to 3 cm
Compatibility and Accessories
- Suitable for R22 or R410A 1/4" or 5/16" systems

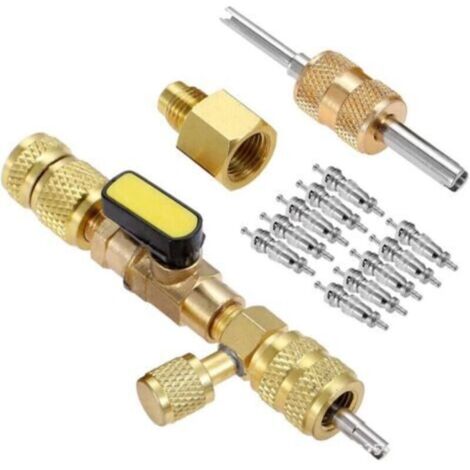

- Package Contents: 1 x Coil Puller, 10 x 5V1 Valve Cores
Installation
- Remove the dead center of the valve stem and close the valve on the tool.
- Adjust the connection between the tool and the air conditioning interface, then tighten the valve onto the air conditioning system.
- Open the valve using the tool after ensuring the tool is securely connected.
- Insert the valve stem into the air conditioner valve and gently turn the rear knob.
- Loosen the coil after finding the correct angle.
Use
- Facilitates the removal and installation of the valve core without requiring the system to shut down or drain the refrigerant.
- Saves hours of draining and refilling.
- To remove the valve core, close the valve and disconnect the air conditioner.
Other Information
- Note: Photo lighting and different displays may cause slight Color differences between the item shown in the photo and the actual color.
- It is recommended to close the coil wrench valve before removing the coil.
Features
- BrandTEHTUY
- Length10 mm
- Warranty1 year(s)
- Pcs per pack1
- Availability of spare parts1 year(s)
- Element to be extractedNut
- MaterialBrass
- Weight200 g
- ManoMano ReferenceME98922252
- MMID412571719614
- Product codeZSino-07961
- EAN6240449316919
