VEVOR 12V Linear Actuator, 7.84 Inch Stroke Ultra Heavy-Duty 2023lbs/9000N Linear Motion Actuator, IP65-Rated 0.2"/s with Mounting Brackets for Industrial Machinery Vessels, Heavy Lifting Systems

VEVOR Linear Actuator

Efficient Stroke Adjustment, Smooth Motion Control

The VEVOR ultra heavy-duty linear actuator features 2023lbs robust torque, IP65 protection level and steady motion at 0.19"/s, providing reliable support and efficient motion for industrial automation, heavy-duty lifting systems, mechanical equipment, transportation, etc.

• Industrial-Grade Thrust
• IP65 Superior Protection
• Versatile Applications
• Built for Heavy-Duty Use
• Key Specifications

Efficient Stroke Adjustment, Smooth Motion Control

The VEVOR ultra heavy-duty linear actuator features 2023lbs robust torque, IP65 protection level and steady motion at 0.19"/s, providing reliable support and efficient motion for industrial automation, heavy-duty lifting systems, mechanical equipment, transportation, etc.

Key Features

• Industrial-Grade Thrust: Delivering 2023 lbs (9000N) of impressive force, VEVOR's 12V Ultra Heavy-Duty linear actuator is built for extreme conditions and heavy loads, excelling in demanding industrial automation, heavy lifting systems, and mechanical equipment
• IP65 Superior Protection: Built with IP65 protection level, the 12V linear actuator offers dust and water resistance, suitable for use in indoor and outdoor environments. (For longer lifespan, prolonged outdoor exposure is not recommended)
• Versatile Applications: Operating below 65 dB (no-load noise), this heavy-duty linear actuator is ideal for barn door, heavy robotic arm pushing, heavy machinery, vessels, transportation systems, heavy lifting platform, industrial automation systems and more high-load tasks
• Built for Heavy-Duty Use: Featuring a robust aluminum alloy housing and reinforced seals, this linear motion actuator delivers high durability and corrosion resistance, suitable for handling heavy loads in warehouses, factories, and industrial settings
• Key Specifications: Travel Speed: 0.2"/s (5 mm/s); Stroke Length: 7.87" (200 mm); Extended Length: 25.67" (652 mm); Retracted Length: 17.8" (452 mm); Current Draw: 20 Amps; Input Voltage: DC 12V

VEVOR 12V heavy-duty linear actuator offers a powerful 2023 lbs vertical lifting force and horizontal pushing power, effortlessly handling a wide range of heavy-duty tasks with high efficiency and precision.

With IP65 protection rating, our 12V linear actuator provides dust and water resistance, ensuring reliable operation in indoor and outdoor conditions. (Note: For longer longevity, prolonged outdoor exposure is not recommended)

For optimal performance, we recommend using the linear actuator in conjunction with a controller, enabling more precise movement control. This product only provides the push rod; additional equipment required for installation need be purchased separately.

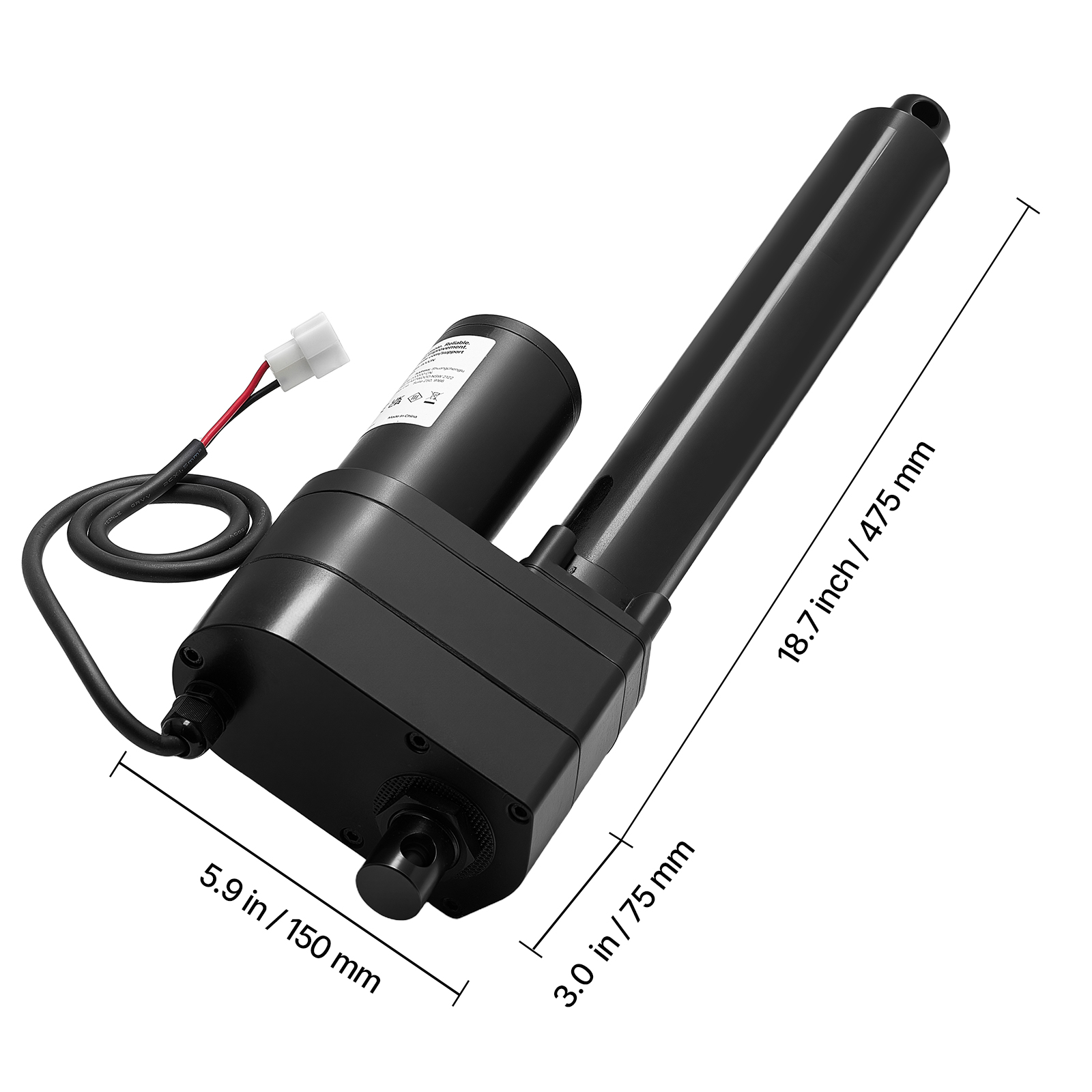

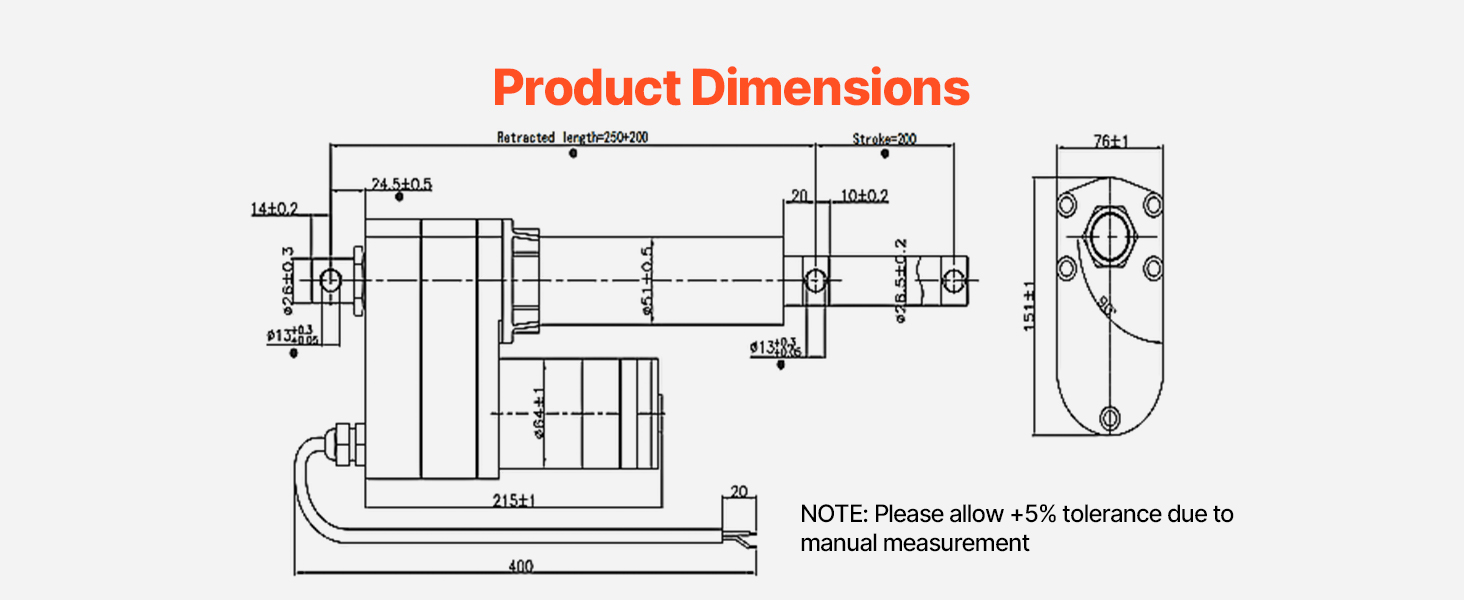

Clearly displayed product dimensions for your reference, ensuring the optimal selection and fit. Stroke Length: 7.87" (200 mm); Extended Length: 25.67" (652 mm); Retracted Length: 17.8" (452 mm).

	Specification Item Model Number: OK648-A Input Voltage: DC 12V Maximum Load / Thrust: 9000N (2023 lbs) Travel Speed: 0.2 inch/s (5 mm/s) Stroke Length: 7.87 inch / 200 mm Extended Length: 25.67 inch / 652 mm Retracted Length: 17.8 inch / 452 mm IP Rating: IP65 Main Material: Aluminum Alloy Net Weight: 12.6 lbs / 5.719 kg Product Dimensions: 18.7 x 5.9 x 3.0 in / 475 x 150 x 75 mm
	Package Content 2 x Mounting Brackets
