VEVOR Drawer Slides, 1 Pair 16 Inch Soft Close Drawer Slides, Ball Bearing Side Mount Drawer Hardware Slides, 500 LBS Load Capacity 3-Section Full Extension Drawer Slides for Smooth Slide, Less Noise

Full Extension Slide Drawers

The cold-rolled steel drawer slides are capable of high hardness with excellent stability and durability. In addition, you will be benefited from the ultra-secure, well-suited, and low-noise device with a detailed guide and handy screws. The universal places include cabinet warehouse containers, industrial drawers, commercial equipment, retrofitted vehicles, etc.

• Three-Section Slides
• Steel & 500 lbs Bearing
• Smooth & Quite to Slide
• Choose the Right Size

Key Features

• Three-Section Slides: 1 pair of 16"/ 40.64 cm in length, 3"/ 7.6 cm in width, 0.75"/ 1.9 cm in thickness. The fold and full extension drawer slides consist of three sections and can be fully pulled out to utilize the drawer's space (Actual size 16", extended size 32"/ 81.28 cm). And the slide drawers are also designed to ensure your drawers smoothly pushing and pulling.
• Steel & 500 lbs Bearing: The heavy-duty drawer slides are constructed with thick cold rolled steel (CRS) plates for a strong bearing capacity of 500 lbs. Therefore, they are tough enough to bear the heavy wooden or iron things you need. In addition, zinc is plated on the surface to stay rust-proof, abrasion-proof for long-term service.

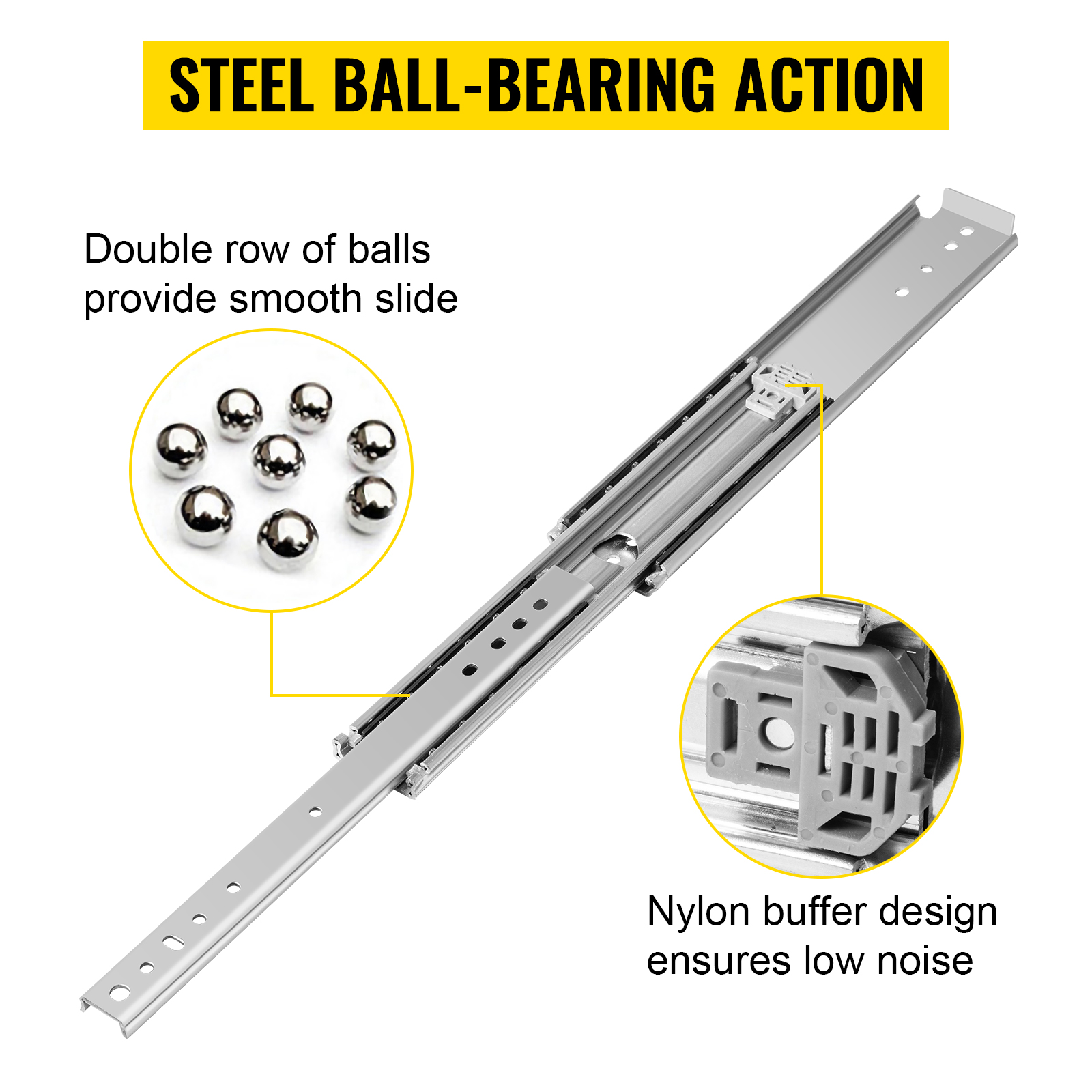

• Smooth & Quite to Slide: Drawer hardware slides are equipped with ball-bearing action to create a quiet environment for your family and work. The row of balls on the two sides of sliding and the nylon buffer design on the second section, which aim to make less noise and friction at closing and open the drawer.
• Choose the Right Size: How to choose the right size of slides for your drawer? Install distance (each side): 0.76"/19.5 mm. Please measure the length of the drawer without the frame board at first. The length of slides should be less than or equal to drawer depth minus 4 mm.

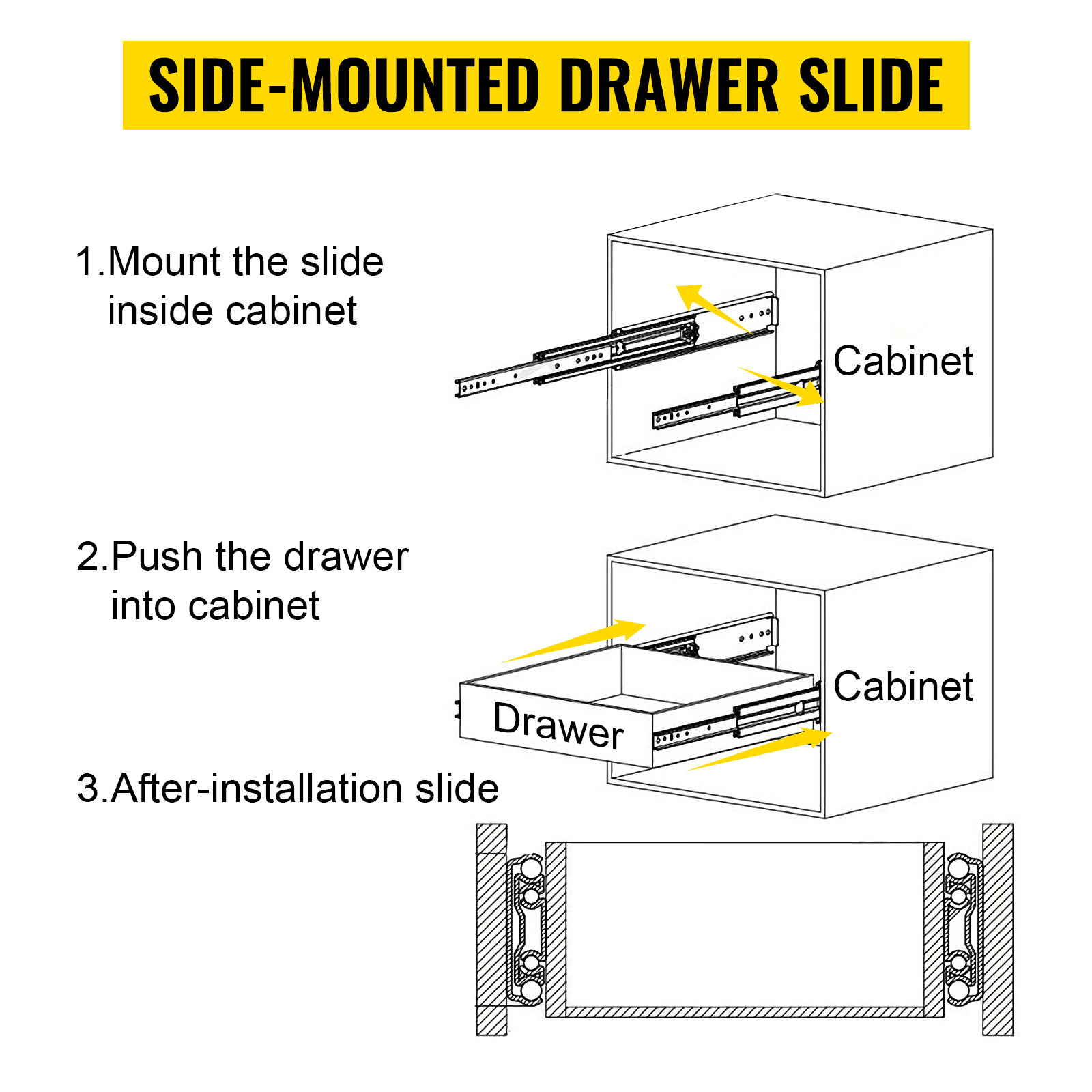

• Installation & Usage: The heavy-duty drawer slides can be installed on the side of the cabinet or machine parts. All included screws and bolts are easy and quick to install. They are mainly used for industrial, commercial equipment, factory machines, office, vehicle, etc.

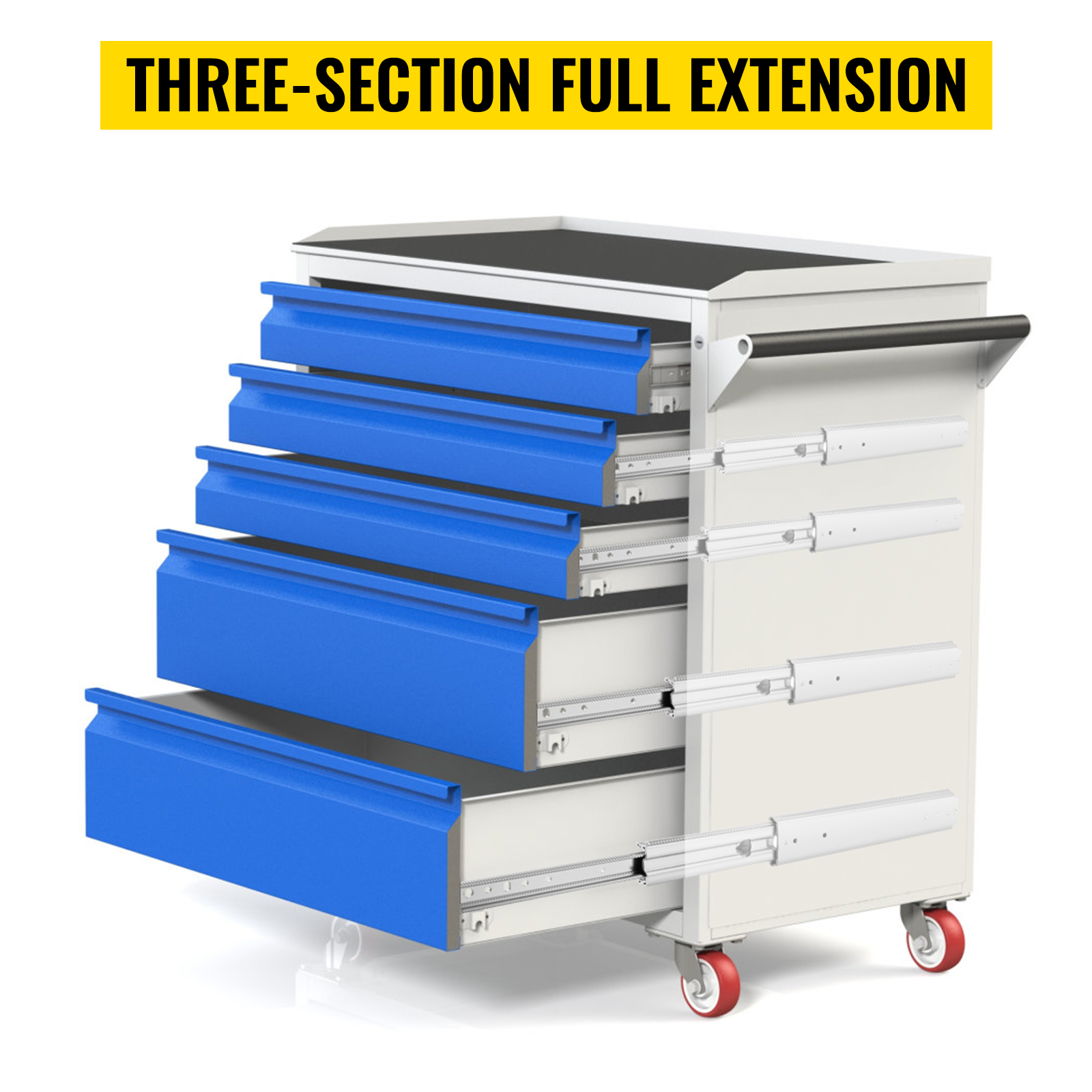

	3-Fold Slide Drawers Firstly, the drawers pull out the middle channels; the outer channel continues, and the inner channel lasts. The three-section slide drawers designs are for smooth slides.		Cold Rolled Steel Made from high-grade cold-rolled steel that is zinc plated can effectively keep the drawer glides and slides scratch-proof, abrasion-proof, and away from corrosion and rust.		Low Noise Design Details Nylon buffer can reduce the direct contact between the outer and the inner channel. In addition, the embedded steel balls make the smooth sliding and quiet.

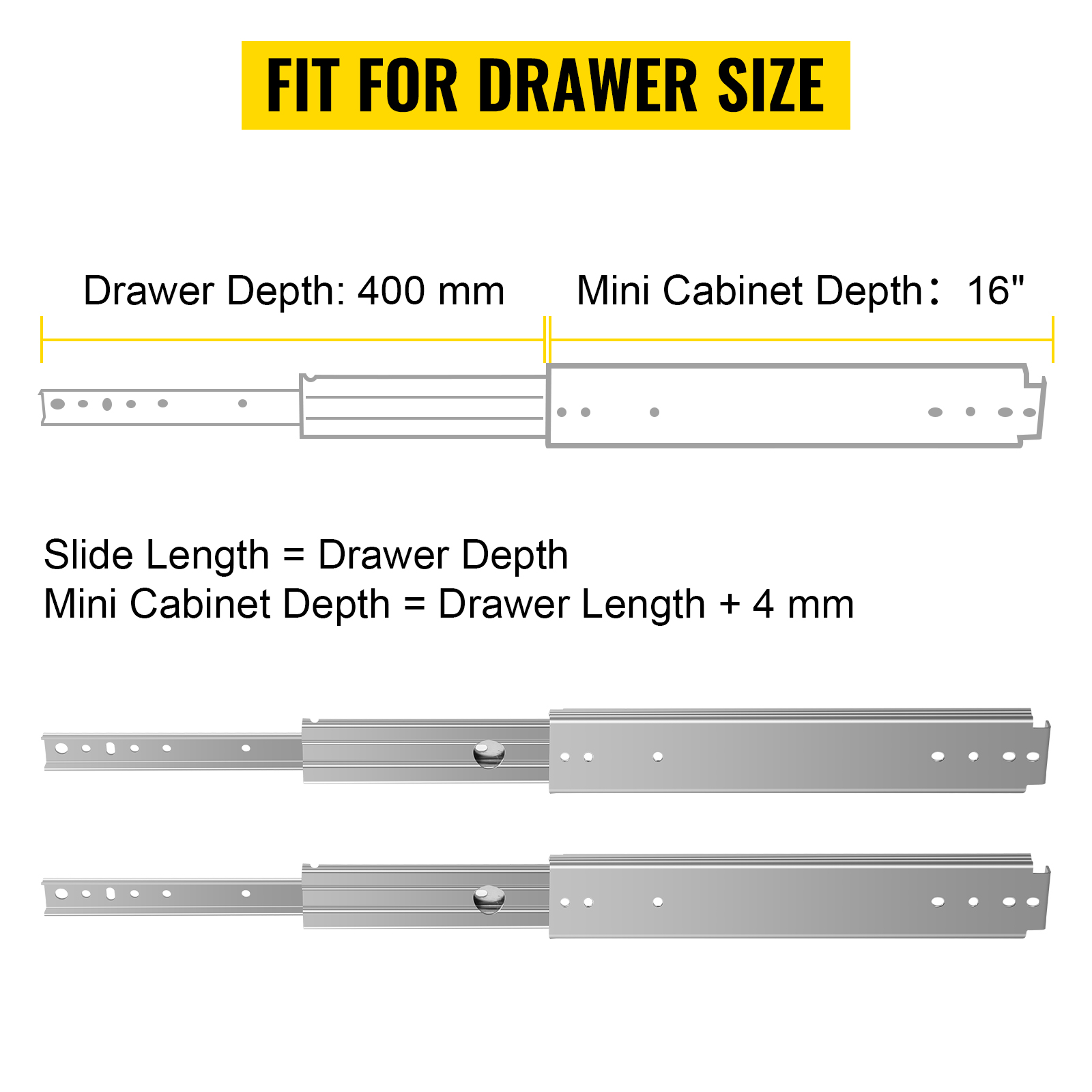

	Fit for Size Slide length can be equal to drawer depth, and the minimized cabinet depth can be drawer length plus 4 mm. Please note that the side-mounted slide rails on both sides should be parallel.		Easy & Quick Assemble It would be better to tighten the bolt between the side and the drawer from outside to inside. Then, the drawer and cabinet from inside to outside.		Wide Application The wood center mount drawer slides are suitable for the following places, such as industrial drawers, modified car drawers, office cabinets, tool rooms, etc.

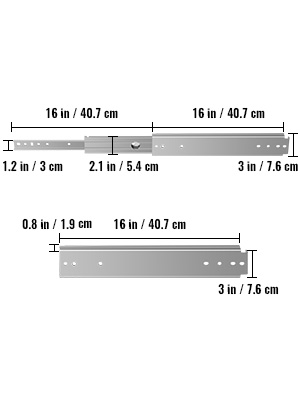

	Specification Model: VV-CTDG-500B WS 16YC Color: Sliver Material: Cold Rolled Steel Finish: Zinc Plated Load Capacity: 500 lbs/ 225 kg Fully Pull-Out Length: 32"/ 81.28 cm Fold Product Size: 16 x 3 x 0.75"/ 40.64 x 7.6 x 1.9 cm Inner Size: 16 x 1.2"/ 40.64 x 3 cm (L x W) Middle Size: 16 x 2.1"/ 40.64 x 5.4 cm (L x W) Outer Size: 16 x 3"/ 40.64 x 7.6 cm (L x W)
	Package Content 2 x Drawer Slides 12 x M6 Screws 12 x M6 Screw Nuts
