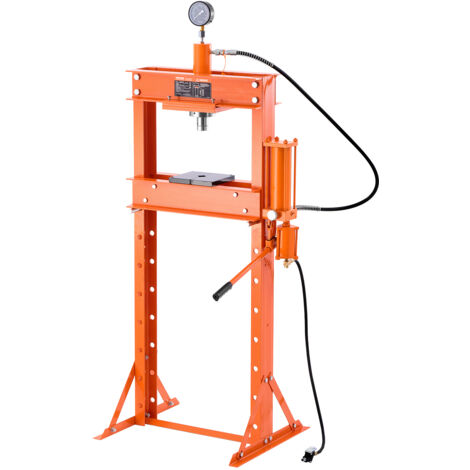

VEVOR Hydraulic Shop Press, 20 T H-Frame Pneumatic Shop Press with Press Plate, Stable Garage Floor Adjustable Hydraulic Press with Triangular Support, Fit for Bending, Straightening & Stamping

A Powerful Helper in Vehicle Repair

Our automotive press is made from high-quality heavy-duty steel, significantly enhancing the stability of the base. This ensures securer and more reliable operation when disassembling and installing components such as bushings, bearings, ball joints, U-joints, and other parts.

• 20 Ton Strong Load Capacity
• Hydraulic and Pneumatic
• Adjustable Height
• Triangular Base Reinforcement
• Heavy-Duty Construction

A Powerful Helper in Vehicle Repair

Our automotive press is made from high-quality heavy-duty steel, significantly enhancing the stability of the base. This ensures securer and more reliable operation when disassembling and installing components such as bushings, bearings, ball joints, U-joints, and other parts.

Key Features

• 20 Ton Strong Load Capacity: Our hydraulic press helps you easily disassemble and install automotive bushings, ball joints, U-joints, and more, as well as straighten, bend, and stamp metal parts. Whether you're a professional or a DIY car repair enthusiast, it allows for quick and simple operation.
• Hydraulic and Pneumatic: Equipped with a pneumatic assist pump and a quick connector for easy attachment to an air compressor, this hydraulic shop press’s system significantly lowers effort, allowing for smoother and more efficient operation, especially during heavy-duty tasks.
• Adjustable Height: The hydraulic shop press’s worktable features a quick-adjust pin system with 9 height settings, ranging from 2.6 to 40.5 inches (65-1030 mm), providing flexible working positions. The cylinder stroke is 5.5 inches (140 mm). Note: Exceeding the cylinder stroke range may cause damage to the cylinder seals.
• Triangular Base Reinforcement: Upgraded with a triangular brace, the hydraulic shop press’s triangular structure significantly enhances base stability. Combined with the H-shaped frame, the press remains steady and wobbling-resistant during the operation of fastening components.
• Heavy-Duty Construction: Built with thickened steel, this structure offers enhanced weight-bearing capacity and durability. The large-diameter pressure column is designed to minimize slipping, ensuring sturdiness and long-lasting performance, even under heavy use.

	Specification Item Model Number: ZX0901 item 20T Product Dimensions: 30.2 × 23.6 × 69.8 in/770×596×1770 mm Cylinder Stroke: 5.7 in/145 mm Rated Load: 20T Hydraulic Pump Operating Pressure: 0.8-1.2 MPa Hydraulic Oil Model: 15# Net Weight: 190.5 lbs/86.35kg(Include all accessories)
	Package Content 1 x 20T Pressure Gauge 1 x Nylon Washer 1 x Oil Cylinder Component 1 x Tapered End Tightening Screw M8×8 (pre-installed on oil cylinder component) 1 x Upper Cap (pre-installed on oil cylinder component) 1 x Piston (pre-installed on oil cylinder component) 4 x Hex Bolt M8×16 2 x Cross Beam 8 x Hex Bolt M16×35 8 x Flat Washer φ16 8 x Spring Washer φ16 8 x Hex Nut M16 2 x Vertical Column 1 x Oil Cylinder Mounting Plate Welded Assembly 1 x Lower Cap (Pre-installed on oil cylinder component) 15 x Flat Washer φ10 15 x Spring Washer φ10 12 x Hex Nut M10 2 x Pressure Block 4 x Workbench Support Pipe 2 x Channel Steel Workbench 2 x Cotter Pin 4 x Hex Bolt M10×130 8 x Hex Bolt M10×25 4 x Diagonal Brace 4 x Hex Bolt M12×30 2 x Angle Iron 1 x Connecting Rod Component 4 x Flat Washer φ12 4 x Spring Washer φ12 4 x Hex Nut M12 1 x Handle 3 x Hex Bolt M10×20 1 x Pneumatic Quick Connect Hose (European-style) 1 x Pneumatic Manual Pump Component 1 x User Manual 1 x European-style Quick Connect Fitting
