VEVOR NEMA Steel Enclosure ,12 x 8 x 6\'\' NEMA 4X Steel Electrical Box, IP66 Waterproof & Dustproof, Outdoor/Indoor Electrical Junction Box, with Mounting Plate

~~£53.99~~

Product out of stock

Product information

Description

General description

The VEVOR NEMA Steel Enclosure is a robust electrical box designed for both indoor and outdoor use. Constructed from high-quality carbon steel, this enclosure offers exceptional protection for your electrical components against harsh weather conditions. With an IP66 waterproof and dustproof rating, it ensures that your equipment remains safe from moisture, dirt, and corrosion.

Technical specifications

Model: SPT
Color: Gray White (RAL7035)
Material: 0.059'' / 1.5 mm Carbon Steel
Coating: Epoxy Polyester Powder Coating
Mounting Plate: 0.079'' / 2 mm Detachable Galvanized Backplate
IP Rating: Designed to meet IP66 and NEMA 1, 2, 4, 4X, & 12 specifications
Connection Type: Hinged
Feature: Lockable, Waterproof
Galvanized Backplate Dimensions: 9.8" x 6" / 25 x 15 cm
Outer Dimensions (H x W x D): 12'' x 8'' x 6'' / 30 x 20 x 15 cm
Inner Dimensions (H x W x D): 11.7'' x 7.8'' x 4.6'' / 29.7 x 19.7 x 11.65 cm
Product Weight: 11.24 lbs / 5.1 kg
Certification: CE / ROHS Certification

Compatibility and accessories

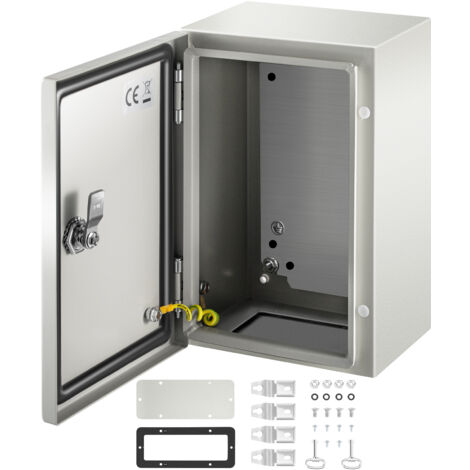

1 x Electrical Box
2 x Keys
1 x Mounting Plate (assembled in the box)
1 x Set of Wall Mounting Pendants
1 x Bottom Sealing Plate

Installation

The junction box features a detachable galvanized backplate that simplifies the installation of PCB boards, terminals, or other electrical components. It includes four mounting holes on the back for easy wall mounting.

Usage

This electrical junction box is suitable for a variety of applications, including factories, construction sites, shopping malls, squares, residential areas, and courtyards. It effectively protects circuits and prevents corrosion, making it an ideal choice for both indoor and outdoor environments.
