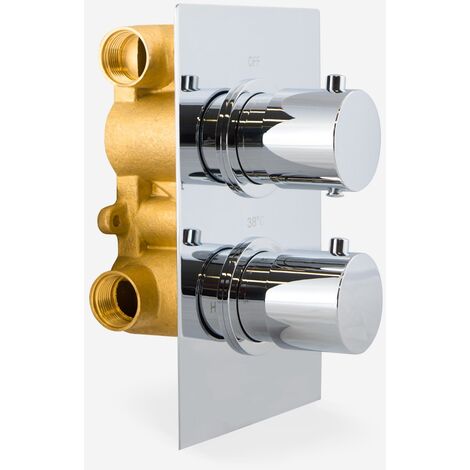

Violet Modern Round 2 Way Concealed Thermostatic Shower Mixer Valve

Concealed Thermostatic Shower Mixer Valve Information:

The Teslie concealed thermostatic shower valve has a unique stylish design giving your bathroom the more modern look the thermostatic shower valve is convenient and safe to use. The top dial controls water 2 outlet diverter and the bottom dial control the water temperature, we understand that safety has to be a first with our products hence why the Teslie thermostatic show mixer valve are fixed with thermostatic control, hence why the Teslie thermostatic shower mixer valve is fitted with a safety button, pre-set to 38 degrees, which prevents any accidental scalding temperatures.

Specifications

• Top Dial - controls water to 2 outlet diverter
• Bottom Dial - temperature control
• Chrome plated
• Durable and solid brass construction
• Thermostatically controlled
• Operating range 20 - 50 deg C with 38 deg C safety button
• Built in non return valves to prevent back flow and filters to protect the thermostatic mechanism
• Chosen temperature maintained to within +/-1ºC.
• Pre-set maximum temperature
• Automatic shut off in event of water cold supply failure
• UK standard size fitting, Inlet 3/4", Outlet 3/4"

Technical Information:

Suitable for the following water systems:

• Combi-boilers
• Gravity Fed systems
• MegaFlow Systems
• Pumped systems
• Un-vented systems
• Pressurised cylinder systems
• Subject to a minimum pressure of 0.5 bar to maximum 7.0 bar

Package Contents

• Concealed Thermostatic Mixing Shower Valve
• Face Plate
• Dials x 2
• Fittings
• Instructions
