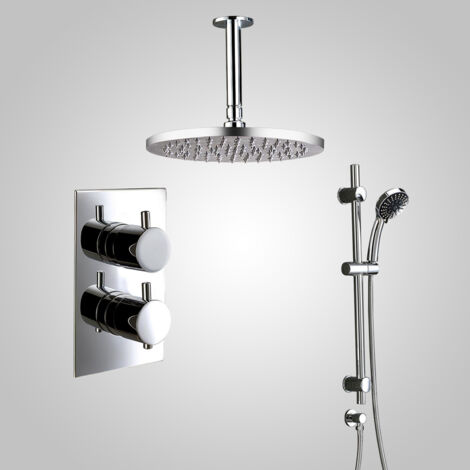

Violet Thermostatic 2 Dial 2 Way Round Set - Shower Head & Slider Rail Handset

Specifications

• Material: Brass
• Style: Modern
• Finish: Highly polished chrome
• Shower head: 8" (200mm)
• Shower arm: 120mm
• Shower hose: 1.5m flexible stainless steel
• Shower handset: Chrome plated
• Anti-scalding: Built-in device
• Child friendly: Yes
• Slider Rail Height: Adjustable Height (from 300mm - 640mm)
• Slider Rail Mounting: Fully adjustable lower or upper wall mounting
• Temperature range: 20-50 degrees C
• Controls: 2
• Diverter: Yes
• Valve: Brass construction
• Mounting Type: Ceiling Mounted
• Structure: Fully integrated
• Minimum pressure: 1 bar
• Maximum pressure: 3 bar
• Guarantee: 10 years

Thermostatic Concealed Valve Features

• Top dial - controls water to 2 outlet diverter
• Bottom dial - temperature control
• High Quality Design
• Chrome Plated
• Thermostatically controlled
• Manufactured from highly durable brass
• Operating range 20 - 50 deg C with 38 deg C safety button
• Built in non return valves to prevent back flow and filters to protect the thermostatic mechanism
• Chosen temperature maintained to within +/-1ºC
• Pre-set maximum temperature
• Automatic shut off in event of water cold supply failure
• UK standard size fitting

Shower Head with Ceiling Mounted Details

• Shower head
• Stainless Steel
• Solid Brass Arm
• Chrome Finish

Technical Information

Suitable for the following water systems:

• Combination boiler systems
• Gravity-fed systems (only with a pump)
• MegaFlo systems
• Pumped hot water systems
• Un-vented hot water systems
• Standard pressurised hot water cylinder type systems

Package Contents

• 1 x Thermostatic Concealed Valve
• 1 x Ceiling Mounted Shower Head and Arm
• 1 x Slider Rail and Handset
• Complete fitting accessories
