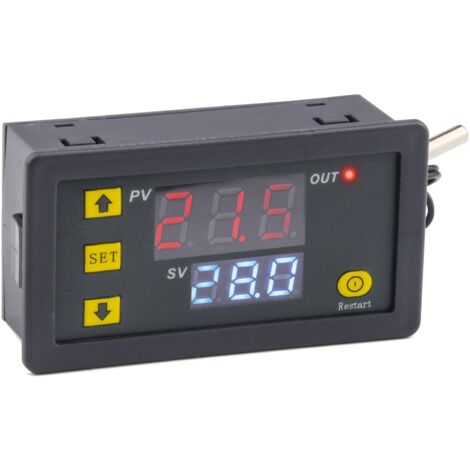

The W3230 Mini Digital Temperature Controller is a versatile thermostat designed for precise temperature regulation. It features a clear LED display and is capable of controlling various high-power loads with its 20A relay output. The device is suitable for a wide range of applications, ensuring reliable performance in temperature-sensitive environments.

Technical specifications

Power supply voltage: DC 5V/12V/24V AC 100-220V

Temperature control range: -50℃ to 110℃

Temperature measurement accuracy: 0.1℃

Resolution: 0.1℃ at -9.9~99.9 and 1℃ in other ranges

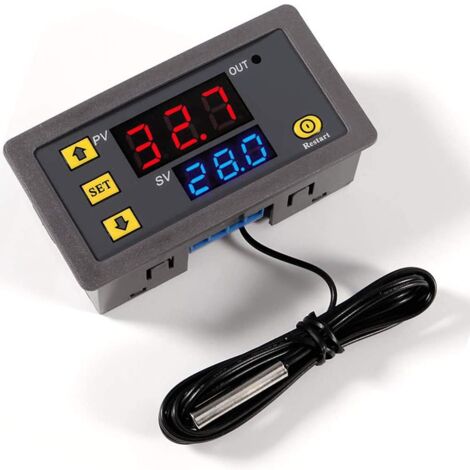

Detection probe: 1 meter NTC waterproof probe

Output capacity: 20A relay

Environmental requirements: -10℃ to 60℃, humidity 20% to 85%

Dimensions: 79 mm x 43 mm x 26 mm

Usage

Connect the power supply and the equipment to power the controller.

The measured temperature will be displayed on the screen.

Press the SET button to adjust the temperature setting; the displayed temperature will flash.

Confirm the setting by pressing SET again, which will return to the normal display.

The controller will automatically turn the relay on and off based on the set temperature.

Indicator light: Flashing indicates a delay in starting cooling or heating; steady light indicates that the relay is closed.

Digital display indicators: LL indicates an open sensor, HH indicates a forced relay disconnection, and --- indicates a high-temperature alarm.

Features

Brand
BEIJIYI
Warranty
2 year(s)
Power source
Corded
Integrated temperature sensor
Yes
Touchscreen compatible
No
