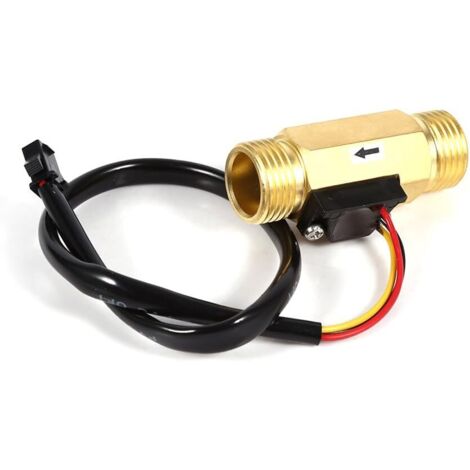

Water Flow Switch - 1 Pc New G1/2" Copper Hall Effect Liquid Water Flow Sensor Switch Flowmeter Meter 1-30L/min High Quality
You may also like
![[NEVER USED] 1/2" Garden Water Meter, Calibrated Cold Water Clock, Tap Meter with Mounting Accessories and Protective Cover, for Home Garden Use, 0-40℃ 1.5 m³/h](https://cdn.manomano.com/images/images_products/42580108/P/181902555_1.jpg)
Compare with similar items
Product information
Description
Description:
Our water flow sensor is made of high quality copper material, very sturdy and durable to use, it is a kind of G1/2" type water flow sensor, its maximum water pressure is 1.75MPa and the flow range is from 1L/min to 30L/min. Lightweight and has a compact size, stable performance, low water pressure startup, very easy to install and safe to use. And it can be perfectly used for water heaters, water dispensers, water purifiers, water vending machines, coffee makers, flow measuring devices, water control machines and so on.
Specifications:
Condition: 100% Brand New
Material: Copper
Color: Shown as picture
Type: G1/2" (Outer Thread Diameter), DN20 mm
Water quality requirement: ≤60 ℃
Starting flow range: 1.5 L/min
Flow rate range: 1-30 L/min
Maximum water pressure: 1.75 MPa
Working voltage range: DC4.5-18V
Maximum current: 10mA
Insulation resistance: ＞ 100MΩ
Electric strength: AC500V, 50Hz
Copper switch length: Approx. 60 mm / 2.4 in
Wire length: Approx. 32
Weight: Approx. 95g
Package Included:
1 x Water Flow Switch
【FEATURES】: This water flow sensor is used to observe the water flow of the water cooling system, in case the pump stops working and causes overheating.
【HIGH QUALITY MATERIAL】: Made of high quality copper, environmentally friendly, very sturdy and durable to use. The design is novel, simple and practical, easy to install, small in size and durable.
【DESIGN】: There is a built-in Hall effect sensor that outputs an electrical pulse with each revolution. The Hall effect sensor is sealed by the water pipe and allows the sensor to stay safe and dry.
【WATER FLOW RATE】: Standard G1/2" thread is widely suitable for most computer cooling pipes or connectors, its maximum water pressure is 1.75Mpa, the flow rate range is from 1L/min to 30L/min.
【SCOPE OF APPLICATION】: It can be perfectly used for water heaters, water dispensers, water purifiers, water vending machines, dosers, coffee water control, etc.
Features
- BrandWOIYIC
- MaterialCopper
- Pcs per pack1
- ManoMano ReferenceME96135904
- MMID188231417858
