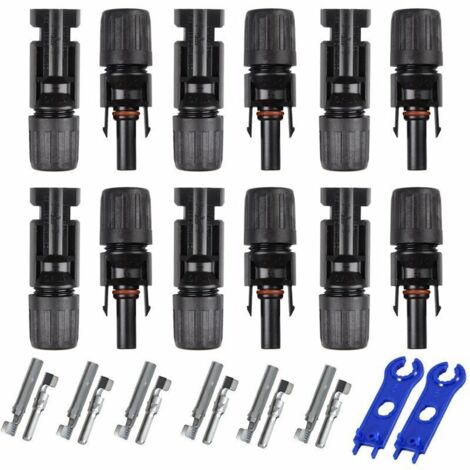

Waterproof MC4 Male/Female Dual Ring Solar Panel Cable Connector Pairs - MODOU
Of which environmental contribution £0.01 including VAT.
Sold by CHAO WORLDWIDE
You may also like
Compare with similar items
Product information
Description
Specifications:
Rated Voltage: 1000 V DC
Rated Current: 25 A (2.5-4.0 mm²)
Protection Rating: IP2*/IP67
Flammability Rating: UL94-V0
Test Voltage: 6000 V (50 Hz, 1 min)
Safety: Class 2
Overvoltage Category/Pollution Rating: CATIII/2
Cable Adapter: OD4.5-7.0 (2.5-4.0 mm²)
Resistance contact connector: 0.5 m & # x3 a9 ;
Insertion resistance & # x2264 ; 50 N
Withdrawal force & # x2265 ; 50 N
Connector conductive material: copper, tin
Connection: crimp
Connector insulation material: PPO or PBT
Operating temperature range: -40~+90°C
Suitable cable: 2.5 mm²/4 mm²/6 mm² (AWG 14/12/10)
Snap-lock system
Drawing
Package contents:
5 x male solar panel cable connectors
5 x female solar panel cable connectors
2 x hex keys
Features
- BrandXISRENS
- Length1 cm
- Width10 mm
- Height10 mm
- Power1 W
