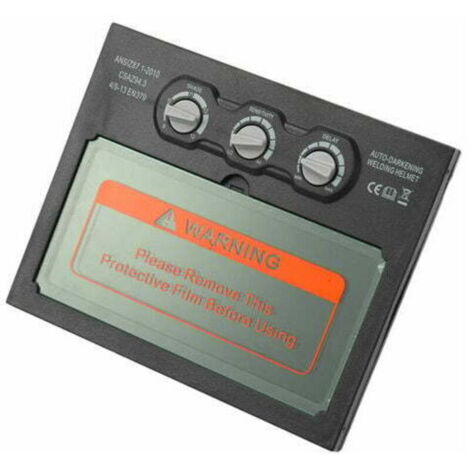

Welding helmet lens, group lens for welding mask lenses with automatic darkening, solar powered, lithium battery

General Description

This welder lens filter is designed for auto-darkening welding helmets. It uses solar charging technology and provides effective protection against UV and infrared rays. Its impact-resistant PP construction ensures safety and durability, while remaining easy to use.

Technical Specifications

• Material: PP + LCD
• Color: Black
• Light State: DIN 4
• Dark State: DIN 9 to DIN 13 (internal adjustment)
• UV/IR Protection: Up to DIN 15
• Switching Time (Light to Dark): 1/10000 s
• Delay Time (Dark to Light): Adjustable from 0.10 s to 0.80 s
• Power Supply: Solar cells and lithium batteries (2 CR2450 batteries included)
• Sensitivity: Adjustable (Low/High)
• Arc Sensor: 2 pieces
• UV Transmittance: 313nm ≤ 0.00006%, 365nm ≤ 0.00006%
• IR Transmission: 780–1300nm ≤ 0.003%, 1300–2000nm ≤ 0.009%
• Operating Temperature: -10℃ to 65℃
• Storage Temperature: -20℃ to 70℃
• Active Viewing Area: 92.5 x 42.5 mm
• Filter Size: 110 x 90 x 9 mm
• Weight: 86 g

Compatibility and Accessories

• Compatible with most standard welding helmets
• Includes: 1 lens Welding

Installation

To install the lens, remove the old lens from the helmet and replace it with the new lens, ensuring it is securely fastened to prevent any unwanted light from entering.

Use

Activate the filter by placing it in a welding environment. The lens automatically darkens in response to the welding arc, providing instant and safe protection. The sensitivity adjustment allows you to adapt the response according to the welding method used.

Other Information

• Easy to use and maintain
• Ideal for professional and hobby welders
