Winch Mounting plate for Hydraulic, 17,000lb and 17,500lb Electric Winches

Sold by Winchmax Ltd

You may also like

Slotted backing plate for M8 U-bolt (37 - 51 mm ID) Zinc Plated Mild Steel

Slotted backing plate for M8 U-bolt (37 - 51 mm ID) Zinc Plated Mild Steel

Slotted backing plate for M10 U-bolt (59 - 75 mm ID) Zinc Plated Steel

Slotted backing plate for M10 U-bolt (59 - 75 mm ID) Zinc Plated Steel

Faithfull Black Japanned Ring on Plate - Durable and Stylish Tool AccessoryFAITHFULL

Faithfull Black Japanned Ring on Plate - Durable and Stylish Tool Accessory

Free shipping
Forgefix Plasterboard Spring Toggle M6 x 75mm Bag 10FORGEFIX
6 options

Forgefix Plasterboard Spring Toggle M6 x 75mm Bag 10

1
Free shipping
Slotted backing plate for M10 U-bolt (41 - 58 mm ID) Galvanised Mild Steel

Slotted backing plate for M10 U-bolt (41 - 58 mm ID) Galvanised Mild Steel

2
Fixing Batten 25mm x 38mm x 2400mm EachENCASEMENT
2 options
#1 in sales

Fixing Batten 25mm x 38mm x 2400mm Each

8
(£6.44/pc)
TIMCO Mirror Plates Slotted Electro Brass - 32mmTIMCO

TIMCO Mirror Plates Slotted Electro Brass - 32mm

Sealey SA85SP Swivel Plate for SA84, SA841, SA841HV & SA85SEALEY

Sealey SA85SP Swivel Plate for SA84, SA841, SA841HV & SA85

Free shipping
x2 5MM Stainless Steel Diamond Eyeplate - Marine Attachment Deck Eye PlateSECUREFIX DIRECT

x2 5MM Stainless Steel Diamond Eyeplate - Marine Attachment Deck Eye Plate

Free shipping
2Pcs Heavy Duty Metal Triangle Fixing Bracket, Wall Bracket Triangle Wall Shelf Brackets, Metal Right Angle Brackets for Hanging Furniture Industrial Connector with Screws (Black)DEWDAT

2Pcs Heavy Duty Metal Triangle Fixing Bracket, Wall Bracket Triangle Wall Shelf Brackets, Metal Right Angle Brackets for Hanging Furniture Industrial Connector with Screws (Black)

Free shipping
2 x Corner Bracket Corner Bracket Trapezoidal Plate Corner Clamp Corner Bracket Bed Frame Accessories Furniture Fixing Corner Connector, Bed Gusset 230x100x35mmDEWDAT

2 x Corner Bracket Corner Bracket Trapezoidal Plate Corner Clamp Corner Bracket Bed Frame Accessories Furniture Fixing Corner Connector, Bed Gusset 230x100x35mm

2 Pack Heavy Duty Steel Door Brackets, U Shaped Brackets for Open Bar Frames, U Shaped Security BarsCYSLMUK

2 Pack Heavy Duty Steel Door Brackets, U Shaped Brackets for Open Bar Frames, U Shaped Security Bars

Free shipping
304 stainless steel U-shaped mounting bracket for frameless glass panels (100mm rod)SNQ

304 stainless steel U-shaped mounting bracket for frameless glass panels (100mm rod)

Free shipping
Right Angle Bracket Stainless Steel 90 Degree Corner Bracket L Shaped Angle Bracket Fixing Bracket Comes With Screws Silver 20 Pieces 303016mmTINOR

Right Angle Bracket Stainless Steel 90 Degree Corner Bracket L Shaped Angle Bracket Fixing Bracket Comes With Screws Silver 20 Pieces 303016mm

£23.58
Free shipping
Eyelet Pad, Stainless Steel Eyelet Plate, with 16 Screws and Plastic Caps, Load up to 40kg, Perfect for Hanging Flower Pots and Fences (8pcs, M5)TINOR

Eyelet Pad, Stainless Steel Eyelet Plate, with 16 Screws and Plastic Caps, Load up to 40kg, Perfect for Hanging Flower Pots and Fences (8pcs, M5)

£23.58
Free shipping
Heavy Duty Mirror Mounting Rail Z-Bracket Mounting Hook Heavy Duty Frame Mounting Brackets for Photos, Mirrors, and Furniture ConnectorsWOIYIC

Heavy Duty Mirror Mounting Rail Z-Bracket Mounting Hook Heavy Duty Frame Mounting Brackets for Photos, Mirrors, and Furniture Connectors

Free shipping
Pieces 600mm Solid Iron Folding Brackets for Wall-Mounted Folding Tables and Wall Shelves, Max Load 150kg

Pieces 600mm Solid Iron Folding Brackets for Wall-Mounted Folding Tables and Wall Shelves, Max Load 150kg

Free shipping
Mirror wall brackets – Pack of 20 clear, crystal-clear plastic clips, frameless mounting, easy installation

Mirror wall brackets – Pack of 20 clear, crystal-clear plastic clips, frameless mounting, easy installation

£19.97
Table connectors, wooden connectors, zinc alloy, connecting parts for dining tables, accessories for swivel desks

Table connectors, wooden connectors, zinc alloy, connecting parts for dining tables, accessories for swivel desks

£46.48
Ceiling light mounting base, 120mm fixing bracket (suitable for home/office pendant lights), 4-packANGEL CERDA

Ceiling light mounting base, 120mm fixing bracket (suitable for home/office pendant lights), 4-pack

Free shipping

Compare with similar items

Product information

Description

General description

For quick and easy installation of a winch on your recovery truck, recovery trailer, or other flatbed applications. This winch mounting plate is also suitable for floor mount applications or as a basis for fabricating a custom 4x4 mounting plate.

Technical specifications

  • Compatible with WINCHMAX Hydraulic and 17,000lb & 17,500lb Electric Winches
  • Deeper than standard mounting plates to accommodate larger diameter winches

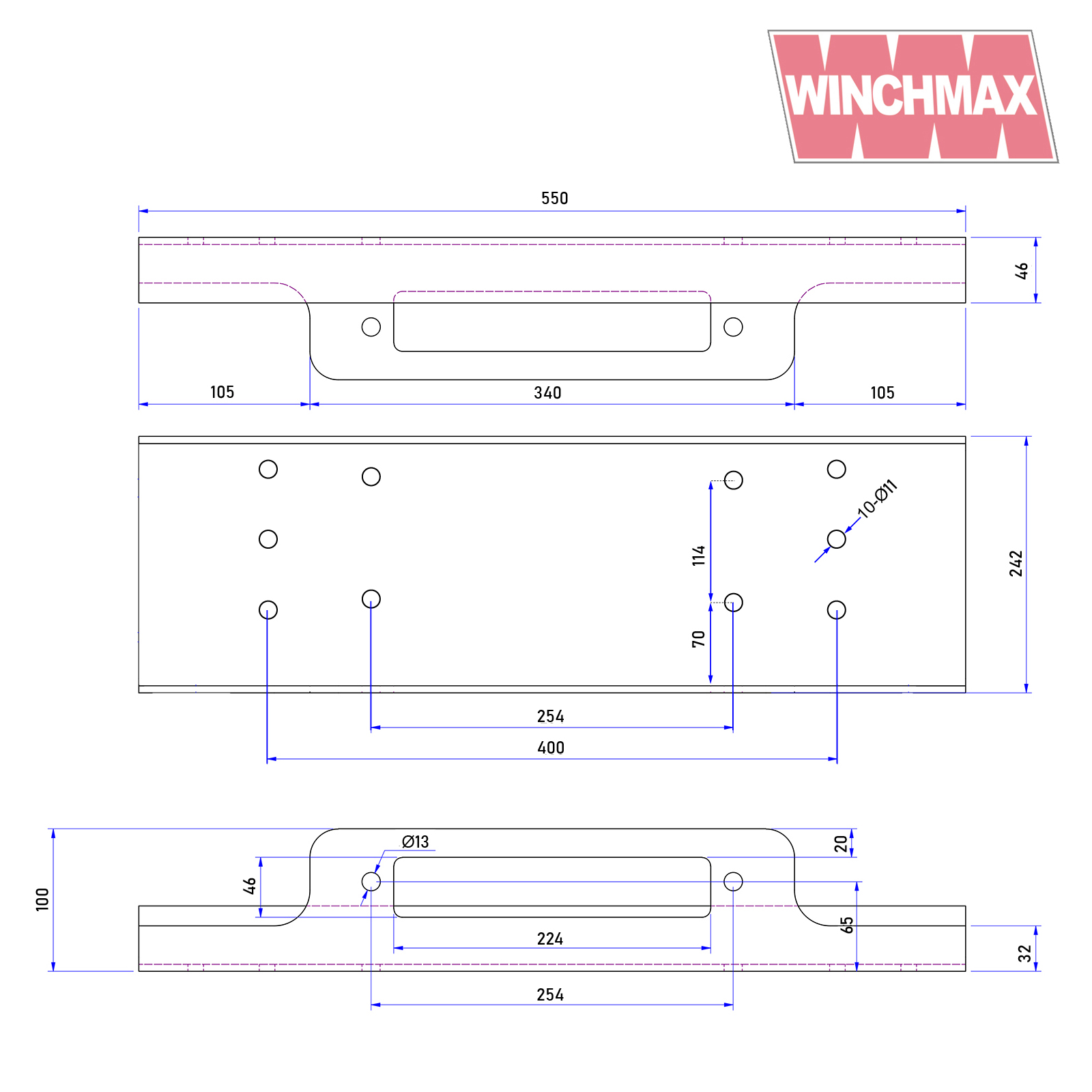

  • Drilled for standard 254mm x 114.3mm (10" x 4.5") bolt pattern
  • Black powder-coated for excellent corrosion resistance
  • Pre-drilled for winch and roller fairlead
  • Manufactured in the UK

    • Other information

  • Industry-leading lifetime warranty on mechanical components & 3 years warranty on electrical
  • VAT invoice provided with every sale

    • Features

    • Brand
      WINCHMAX
    • Material
      Steel
    • Origin
      Made in the United Kingdom
    • Colour
      Black
    • Maximum load
      6123 kg
    • Width
      26 cm
    • Length
      55 cm
    • Weight
      9000 g
    • Fixing type
      Mounting brackets
    • ManoMano Reference
      ME41603330
    • MMID
      331477163575
    • Product code
      WMMP3
    • EAN
      3475684537475
