Wind speed sensor anemometer 0-5V – Aluminum alloy – Accuracy ±1 m/s – Range 0-30 m/s – Low power consumption

General Description

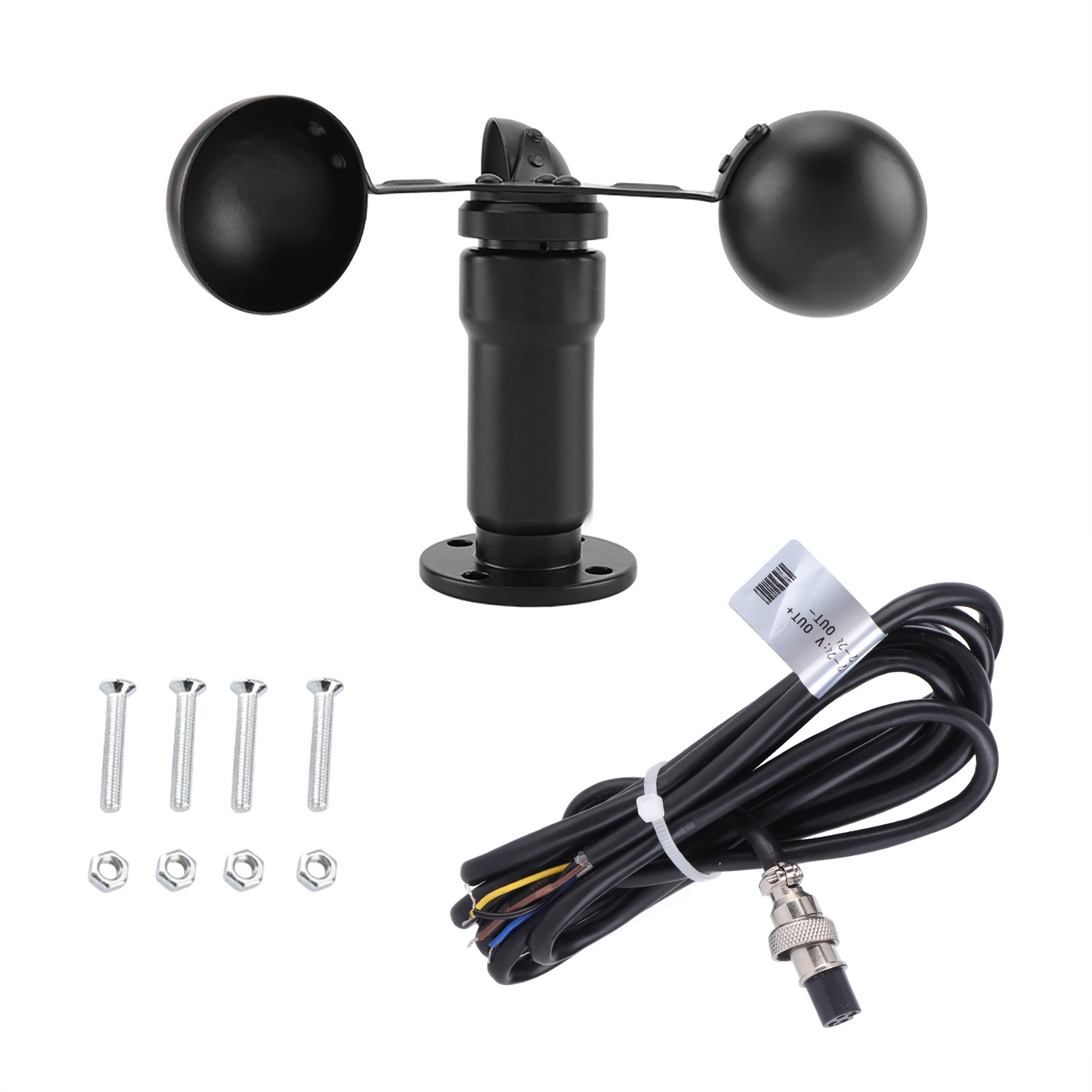

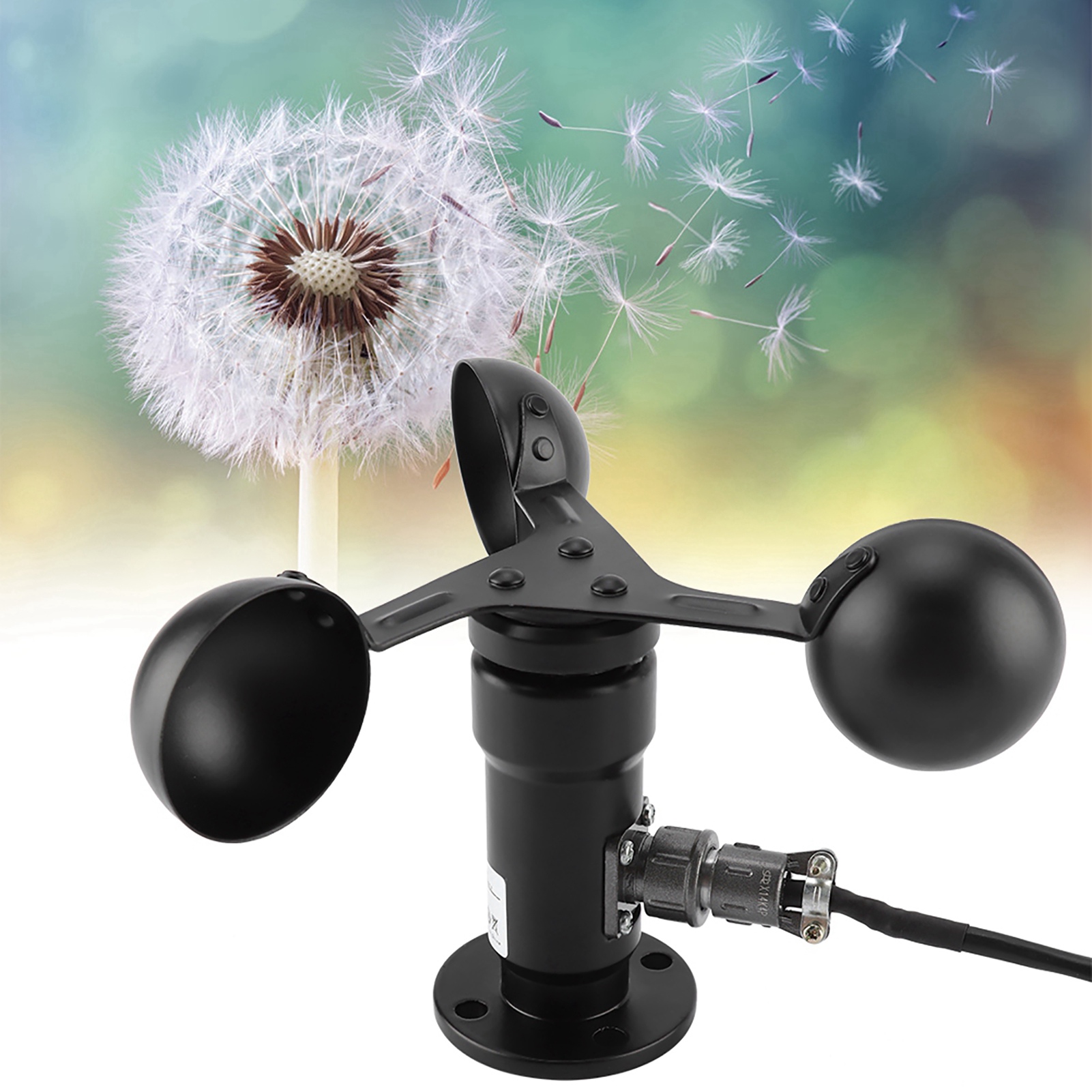

The wind speed sensor is a high-precision anemometer made of aluminum alloy and polycarbonate. With its three-cup design, it measures wind speed in a 360-degree arc while offering low power consumption and stable performance. This lightweight sensor reduces friction and improves sensitivity, ensuring accurate measurements. It is ideal for use in various fields such as power plants, weather monitoring, navigation, aviation, and agriculture.

Technical Specifications

• Item Type: Wind Sensor
• Material: Aluminum Alloy, Polycarbonate
• Output Voltage: 0-5V
• Wind Speed ​​Measurement Range: 0-30 m/s
• Wind Speed ​​Measurement Accuracy: ±1 m/s
• Response Time: Baud Rate: 2400/4800/9600
• Power Consumption: Operating Temperature: -30 to 80 °C
• Operating Temperature Environment: 0-100% RH (15-95% RH)
• Weight: Approx. 518 g
• Height: approximately 12.4 cm

Installation

• Ensure the mounting bracket is parallel to the ground.
• Install with the flange and secure with a bolt to the bracket.
• Connect the air intake connector to the sensor's air intake through the designated air passage hole.

Applications

The sensor is used to measure wind speed and direction in various contexts, including:

• Wind speed measurement at power plants
• Weather monitoring
• Navigation and aviation
• Intelligent measurement of wind speed and direction in agriculture
