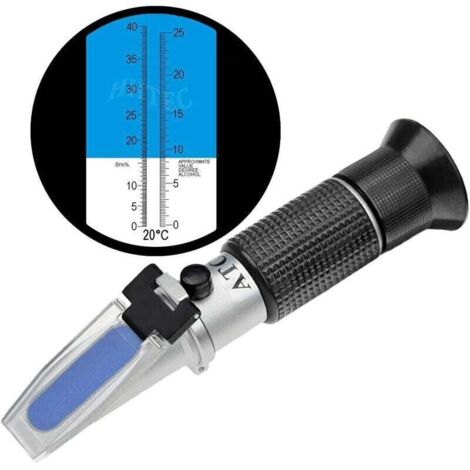

Winemaker's refractometer potential alcohol content: 0-25% Sugar: 0-40% with ATC for wine Brix brewing to measure sugar content in order to produce a better wine.
You may also like
Compare with similar items
Product information
Description
1. Main Technical Parameters:
Measuring Range and Minimum Scale: Brix: 0-40% Minimum Scale: 0.2%
Alcohol: 0-25%
With temperature compensation, it can overcome data deviations caused by temperature changes and make the data more accurate.
The eyepiece has been improved; the objective glass is heavy crown optical glass, not ordinary glass, which provides greater clarity and reduces observer fatigue.
2. How to Use:
1) Align the refracting prism with the direction of the light and adjust the diopter angle ring until the marking line is clear;
2) Adjust the Benchmark: Before measuring, prepare the calibration solution (pure water), the instrument, and the liquid to be tested at the same temperature.
Open the lid, then take 1 to 2 drops of standard droplets onto the refractive prism and lightly press the lid with your hand to draw a line of demarcation between light and dark. Turn the calibration bolt to align the light-dark line in the eyepiece's field of view with the reference line (0%). Note: This optical instrument has been factory-calibrated and is ready for immediate use. 3) Open the cover, clean the prism surface with a soft cloth, apply 1 to 2 drops of the solution to be tested to the refractive prism, replace the cover, and gently press down. Read the relative scale of the light-dark line, indicating the concentration and density of the measured solution. 4) After measurement, wipe the prism surface and cover plate with a damp cloth and store properly after drying. Correction: The instrument must be zero-calibrated before measuring. Take a few drops of distilled water, place it on the detection prism, and turn the zero adjustment screw to set the dividing line to the 0% position on the scale. Then clean the inspection prism and proceed with the inspection. Some instrument models require a standard solution instead of distilled water for calibration.Precautions
This instrument is a precision optical instrument; the following points must be considered during use and maintenance:
1. You must be careful when using it, strictly according to the instructions, and do not arbitrarily loosen the instrument's connecting parts, drop it, allow it to collide with anything, and strictly prohibit violent vibrations.
2. After use, it is strictly forbidden to put it directly into water to clean it. It must be wiped with a soft, clean cloth. The optical surface must not be bumped or scratched. 3. The instrument must be stored in a dry, non-corrosive place.
Features
- BrandTEHTUY
- Length1 cm
- Width1 cm
- MaterialMetal
- Power sourceManual
