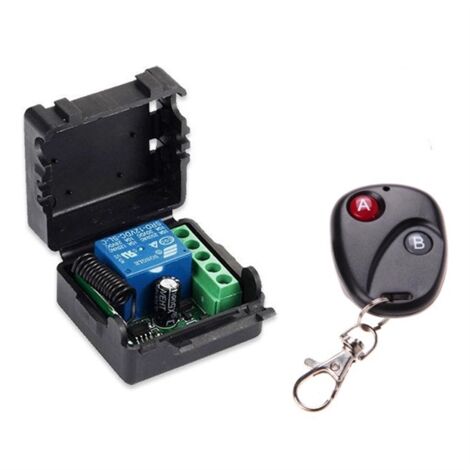

Wireless Remote Control Switch DC 12V 10A 433MHz RF Transmitter with Receiver for Anti-Theft Alarm System

Features: Three output working modes for choosing
Safe and flexible for operation and install
Widely use in house, mall, electromobile, cars, motorcycle anti-theft alarm system or other control systems
Specified as preferred components in remote control garage, roller curtain, door locks, remote sensing, telemetry, industrial control and wireless security alarm industry
Decode: Fixed code, soldering

Specifications
Power Supply: DC 12V
Relay: 10A/250V AC, 10A/125V AC, 10A/30V DC, 10A/28V DC
Work Voltage Range of Relay: AC 110-240V or DC 0-28V
Operating Temperature:-40℃ - 80 ℃
Color: black
Material: PCB+ plastic+metal
1.Transmitter
Channel: 2 CH
Remote Control Distance:0-100m
Encode: Fixed code, soldering 2260 2262
Frequency: 433.92

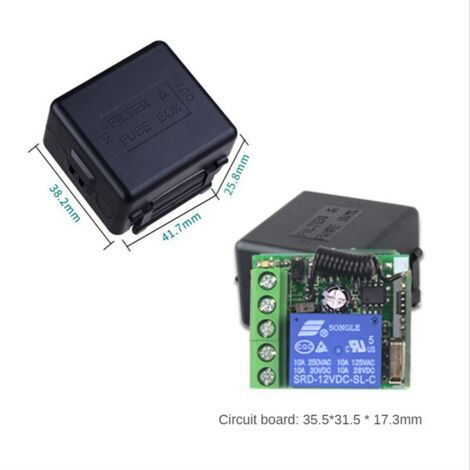

Size: 68mm x 48mm x 15mm
2.Models:
1)Toggle/Self-Lock: Press- On; Press again- Off
press one button for one time is working/ON .press the same button again is stop/OFF .(1 channel switch(receiver) need 1 button remote control (transmitter).
2)Latched/-Lock: Press- On; Press other button- Off
press one button is working/ON ,press another button is stop/OFF . ( 1 channel switch( receiver) need 2 buttons remote control (transmitter).
3)Momentary/Jog: Press and hold- On; Release- Off
Keep pressing one button is working /ON. loosen your finger is stop/OFF .1 channel switch(receiver) need 1 button remote control (transmitter )
(Original Setting is Momentary,Change it by yourself.)
Different batches, the appearance or color of the parts on the controller board may be different from the pictures, which will not affect.

Package Contents:
1 x remote control
1 x Receiver

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
