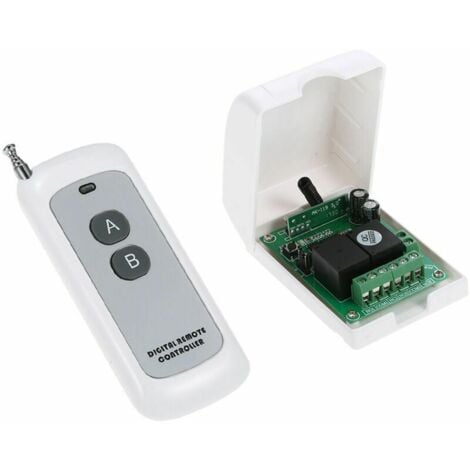

Wireless remote control switch, with 1 wireless remote controls

Features:

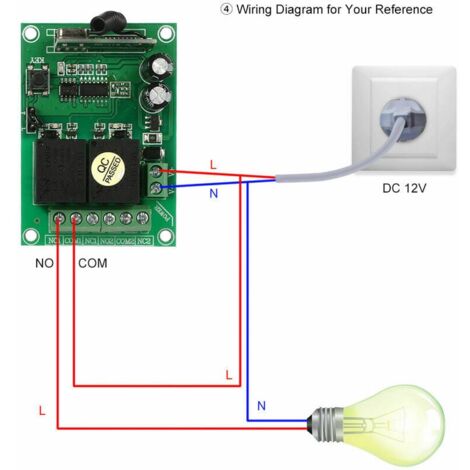

* Very convenient to use, simple wiring diagram connection mode.
* Can be connected to electronic control lock, light, fan, window, curtain, motor, car, hoist, motor drive, lifter control or other devices with AC85V-250V or DC12V. To remotely unlock the door, turn on the light, open or close the curtain, etc.
* You can control the receiver with transmitter (remote control) on/off from any place within a reliable distance (free zone of 500m). (Wireless RF signal can penetrate walls, floors and doors.)
* One/multiple transmitters can control one/multiple receivers at the same time.
* Supports remote controls up to 16pcs.
* This switch can learn 1527 coding remote controls.
* The working mode can be changed by yourself: you can switch to momentary mode, switch three modes or lock according to your needs.
* The wireless receiving controller with high privacy, stable performance, low consumption characteristic, skip line or code switching code.
* Code pair learning: It can be used with any remote control with the same frequency, so you don't have to worry about losing the remote control anymore. (If the remote control is lost, buy one and pair it with the receiver.)

Features:
Input Power: DC12V
Channel: 2CH
Standby Current: ≤10mA
Max. Working Current: 10A
RF Frequency: 433MHz
Receiving Sensitivity: ≤-105dBm
Transmission Distance: 500m(open area)
Remote Control Storage: up to ;at 16 PCS< br/> Working Mode: Momentary, Toggle, Lock
Momentary: (Press and hold -> On, release -> Off)
Locked: (Press -> On, press another key -> Off)
Toggle: (Press -> On, press -> Off again)
Wiring Type: Fixed Connection
Output Terminal: NO, NC, COM
Power Supply Output: DC/AC optional
Remote Control Battery: 1*12V 23A (Included)
Supported Remote Control Type: Learning Code (1527 chip)
Working Temperature: -10 + 60
Receiver Board Size: Approx. 7.1 * 5.1 * 2.2cm / 2.79 * 2 * 0.86in
Fuse Box Size: 8.6 * 6.1 * 2.8cm / 3.39 * 2.4 * 1.1in 15 * 11.5 * 3cm / 5.9 * 4.53 * 1.18in Package Weight: Approx. 101g / 3.56oz


Package List:
1 * Receiver Board
1 * fuse box
1 * Remote control
