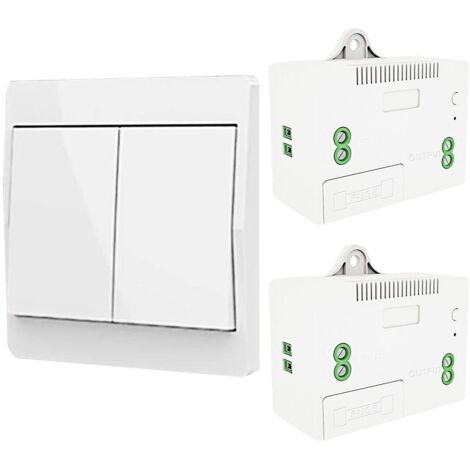

Wireless self-generating lighting switch, radio frequency switch and relay receiver, controller with fuse, battery-free kinetic switch (1-way kit with 2 keys)

【Excellent Design】 433 MHz RF self-generating wireless light switch. You can remotely turn lights or other devices connected to the relay receiver on/off via the kinetic wireless switch. Stable and reliable performance with high receiving sensitivity (> -110dBm). Radio frequency signal transmission. A strong signal can penetrate walls, floors, doors, etc. It can be controlled from a distance of 30-50 meters indoors.

【Easy to Install】 The mini receiver size is 60*43*27 mm. It installs between the power supply and the device. It can be easily mounted on the panel using screws. You can easily install it to control lights or outlets. No wiring is required.

【Multi-Player Control】 Each receiver can store approximately 5 wireless switches. This allows you to share the switches with the family. Everyone can remotely control the device connected to the receiver.

【High-Quality Switch】 The self-powered wireless switch can withstand over 200,000 clicks. No battery required. Safe and waterproof, it can be installed directly in the bathroom, kitchen, etc. Even with wet hands, the wireless switch can be operated. No need to worry about electric shocks or a wet and rusty battery. User-friendly and safe for children and the elderly.

【Quality Assurance】 High-quality relay with a lifespan of over 400,000 uses. This receiver uses a 10A relay, which can handle high-power electrical devices. The controller's maximum load is 1000W. The receiver is suitable for AC voltages of 85V to 250V, so AC 110V/220V/230V is OK.

【Self-Protection】 There is a 10A fuse in the receiver that protects it from overload. The fuse can be easily replaced.

Strong 433 MHz RF Signal

The wireless remote control switch, which uses 433 MHz radio frequency technology, has a strong signal that can penetrate walls, floors, and doors. You can control any device connected to the relay receiver via the wireless switch from anywhere within a reliable range. It is a kinetic wireless switch; no batteries are required. Energy saving.

Easy to Use

There is no need for wiring between your lights --> traditional switch --> power supply. You can easily control the light connected to the controller via the wireless switch. No need to cut into the wall wiring. The wireless switch can be mounted on any wall. There is a fuse inside the receiver to protect against overload.

【Wide Application】

These products can be used in homes, farms, factories, offices, laboratories, supermarkets, etc. Wireless remote control applications range from simple household remotes to automation systems such as lights, water pumps, water heaters, wireless security alarms, ventilation devices, fans, lamps, wireless door alarms, monitors, printers, fountains, and other electrical equipment, etc.

Product Parameters

DieseRC Kinetic Wireless Switch

Operating Voltage: AC 85V ~ 250V

Maximum Current: 10A

RF Frequency: 433MHz

Receiving Sensitivity:> 110dBm

Operating Temperature: -30 ~ +80 ℃

Reception Range: Approximately 50 meters indoors

Standby Current: <5 mA

Relay Receiver Size: 60*43*27 mm

Kinetic Wireless Switch Size: 86 * 86 * 15 mm

How to Program

Press the button on the kinetic wireless switch; the light will turn on. Press the button again; the light will turn off.

Programming

Press and hold the learning button (on the receiver) for 3 to 5 seconds. The LED indicator will light up.

Press a button on the kinetic wireless switch. succeed.

【More flexibility】 Extremely easy to program and reset. You can easily add additional wireless switches yourself as needed.
