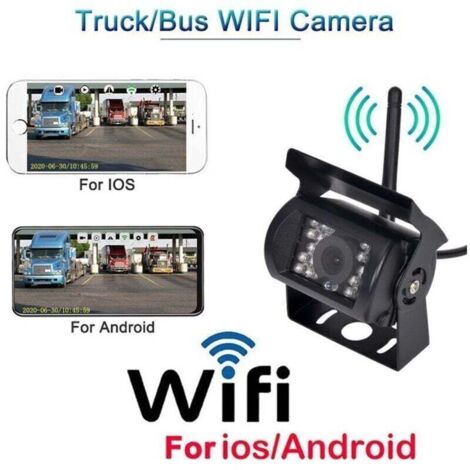

Wireless WIFI HD reversing camera 12V-24V for trucks, 170-degree wide angle, 50m transmission distance, night vision, IP67 waterproof.

Photosensitive chip: GC2053 Lens material: 850 infrared metal lens with four glass panes Lens angle: horizontal angle 120°, vertical angle 90°, diagonal 170° Operating voltage: 12V-24V Design format: AHD Resolution: 1024(H)x600(H) Power interface: DC head Video interface: wireless transmission without signal/WIFI Housing material: 850 infrared metal lens with four glass panes Operating temperature: -30°C-70°C Storage temperature: -40°C-70°C Power cord: 1 meter Waterproof rating: IP67 Transmission distance: 50 (open) Light panel specification: Infrared night vision light panel 850/optional white LED light Mirror/adjustment: Mirror System: Default system Reference line: Adjustable Compatibility: Compatible with iOS or Android systems
Feature: 1. High-performance chip: The high-performance image processing chip is used to provide high-quality images while ensuring a high frame rate, truly enabling high definition and smoothness.
2. Electronic rearview mirror: While driving, click on the mobile phone app to enter the rearview mirror video interface, and you can view the rearview mirror video in real time. 3. Front and Side View: The vehicle's rearview camera can be installed in the front, rear, left, and right blind spots of the vehicle to monitor these blind spots in real time. 4. New Transmission Method: The smart device and the camera are connected via Wi-Fi to achieve a real-time display of the high-definition reverse image, eliminating cumbersome wiring in the vehicle's body. Widely used in automobiles, buses, commercial vehicles, trucks, engineering vehicles, and other transportation equipment.
5. Without circulation: once the camera is turned on, a wifi hotspot is automatically established and the mobile phone can carry out a high-definition video transmission without Internet traffic. After startup, it will automatically connect to the mobile phone, which is convenient to use.
6.Take photos: The app can take photos, save and playback images on the smart device.
7.Driving Video: The app on the smart device can record and save images, realize video recording and video sharing, and save important video data for backup.
8. Video playback: from the smart device, the application can read the video files in the memory of the smart device to reproduce the shooting scene.
9.night vision without light: the rear view of the car can be clearly seen in the dark environment, which makes driving and reversing at night safer.
10.Large wide-angle lens:The large wide-angle lens is used to cover the rear panorama of the car at a wide angle.
Method of operation: 1. Scan first and download the application from the manual to your mobile phone.
2. Install the camera in the car, connect the power supply, and insert the memory card.
3. Open the application, click on "Connect device," open the Wi-Fi page on your mobile phone, select the camera's Wi-Fi network. The connection password is: 12345678.
4. Once the Wi-Fi connection is successful, open the application, click on the video recording function, and it can be used normally.
