X2 3/8" X 3/8" Self Colour Square Head Trawler Bow Shackles - Fishing Trawling Marine Commercial

You may also like

Compare with similar items

Product information

Description

General description

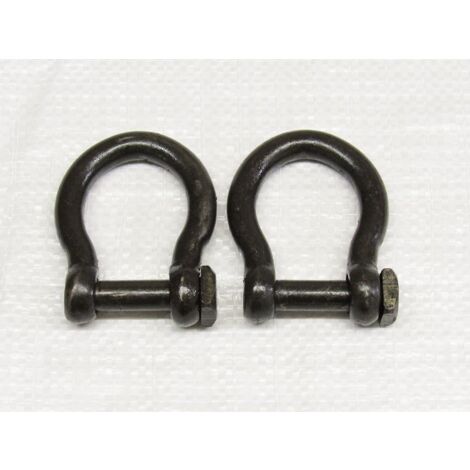

These 3/8" x 3/8" Square Head Bow Shackles are designed specifically for fishing trawling and marine commercial applications. Manufactured from drop forged mild steel, these shackles feature a square head pin, making them ideal for use on trawlers and in situations where a standard pin head could potentially damage expensive equipment. Please note that these shackles are not intended for lifting purposes.

Technical specifications

  • Body Finish: Self Colour
  • Manufactured: Drop Forged
  • Available Sizes:
  • Code SFTBS10: A (10 mm), B (9.5 mm), C (18 mm), D (18 mm), E (42.5 mm), F (30 mm), G (15 mm)
  • Code SFTBS12: A (11.5 mm), B (12 mm), C (26.5 mm), D (21.5 mm), E (50 mm), F (39 mm), G (19.5 mm)
  • Code SFTBS12A: A (12 mm), B (15 mm), C (24.5 mm), D (29.5 mm), E (49.5 mm), F (35 mm), G (17.5 mm)
  • Code SFTBS16: A (15 mm), B (15 mm), C (31.5 mm), D (26.5 mm), E (62.5 mm), F (47.5 mm), G (23.75 mm)
  • Code SFTBS16A: A (15.5 mm), B (19.5 mm), C (31 mm), D (33.8 mm), E (67 mm), F (50 mm), G (25 mm)
  • Code SFTBS20: A (18.5 mm), B (18.5 mm), C (35.5 mm), D (35 mm), E (72.5 mm), F (57.5 mm), G (28.75 mm)
  • Code SFTBS20A: A (19 mm), B (21 mm), C (38.5 mm), D (39 mm), E (86.5 mm), F (60.5 mm), G (30.25 mm)
  • Code SFTBS22: A (21 mm), B (20.5 mm), C (41.5 mm), D (36.5 mm), E (83.5 mm), F (64.5 mm), G (32.25 mm)
  • Code SFTBS22A: A (21.5 mm), B (23.5 mm), C (43 mm), D (41.5 mm), E (92.5 mm), F (65 mm), G (32.4 mm)
  • Code SFTBS25: A (24 mm), B (24 mm), C (50 mm), D (46 mm), E (101.5 mm), F (73.5 mm), G (36.75 mm)
  • Code SFTBS25A: A (24 mm), B (27 mm), C (48.5 mm), D (49.5 mm), E (102 mm), F (78 mm), G (39 mm)
  • Other information

  • Product Code: SFTBS10
  • Note: A wide variety of marine equipment is available.
  • FREE DELIVERY
  • Features

    • Brand
      SECUREFIX DIRECT
    • Weight
      100 g
    • Material
      Steel
    • Maximum load
      80 kg
    • Warranty
      1 year(s)
