12 Ton Galvanised Bow Shackle With Square Head - 12000KGS Marine Boat Trawler Tested Certified

Name: 12 Ton Galvanised Bow Shackle With Square Head - 12000KGS Marine Boat Trawler Tested Certified
Brand: SECUREFIX DIRECT
SKU: SFBPTTFP32
Price: 16.95 GBP
Availability: InStock

Buying for your business?

Negotiated prices excl. VAT up to -20%

Create a pro account

Sold by SecureFix Direct

Product information

Description

General description

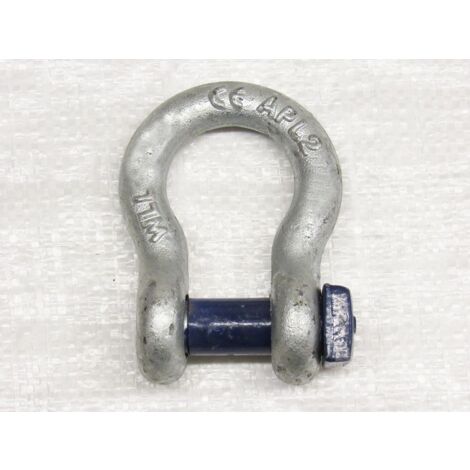

Bow Shackle with Square Head, manufactured from drop forged steel, is designed for marine and heavy-duty applications. It features a hot-dipped galvanised body and a painted pin finish, ensuring durability and resistance to corrosion. With a high safety factor of 5:1, this shackle is ideal for use in trawlers and other applications where a standard pin head may damage expensive equipment.

Technical specifications

Safe Working Load: 12 Tons

Body Finish: Hot Dipped Galvanised

Pin Finish: Painted

Safety Factor: 5:1

Dimensions:

CODE SFBPUSTBS2: SWL 2 Ton, A 13 mm, B 16 mm, C 22 mm, D 29.5 mm, E 47.5 mm, F 33.5 mm, G 16.75 mm

CODE SFBPUSTBS3.25: SWL 3.25 Ton, A 16.5 mm, B 19 mm, C 27.5 mm, D 39 mm, E 59.5 mm, F 42 mm, G 21 mm

CODE SFBPUSTBS4.75: SWL 4.75 Ton, A 19 mm, B 22 mm, C 33 mm, D 47 mm, E 71 mm, F 50.5 mm, G 25.5 mm

CODE SFBPUSTBS6.5: SWL 6.5 Ton, A 22.5 mm, B 25.5 mm, C 38.5 mm, D 53 mm, E 84.5 mm, F 58 mm, G 29 mm

CODE SFBPUSTBS9.5: SWL 9.5 Ton, A 26.5 mm, B 31 mm, C 44.5 mm, D 55 mm, E 112 mm, F 73.5 mm, G 40.8 mm

CODE SFBPUSTBS12: SWL 12 Ton, A 33 mm, B 35.5 mm, C 52 mm, D 76.5 mm, E 115 mm, F 80.5 mm, G 40.25 mm

Other information

Test certificate supplied via email

Colour may vary from the picture

Free delivery available

Features

Brand
SECUREFIX DIRECT
Pcs per pack
1
Weight
100 g
Maximum load
80 kg
Material
Two-material
ManoMano Reference
ME27138702
MMID
505170861582
Product code
SFBPTTFP32
EAN
600988495098
