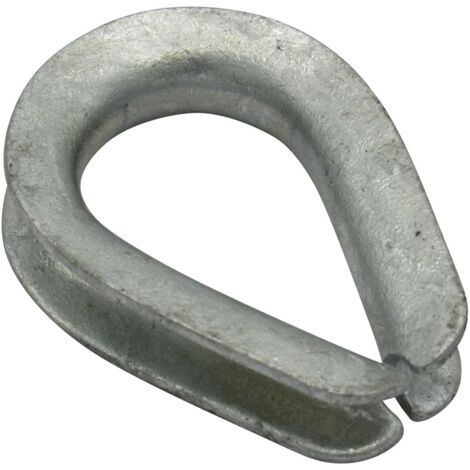

Name: x20 3/8" US Fed Wire Rope Thimbles - 10MM FF-T276B Type 3 Galvanised
Brand: SECUREFIX DIRECT
SKU: SFUST10
Price: 11.95 GBP
Availability: InStock

Product information

Description

General description

These heavy-duty wire rope thimbles are designed to create a loop in wire rope, providing protection against wear and deformation of the wire rope eye. They meet the performance requirements of US FED Spec FF-T 276B Type 3, making them suitable for various lifting applications.

Technical specifications

Size: 3/8'' (10MM)

Quantity: 20

Material: Galvanised Steel

Product Codes and Dimensions:

SFUST06: A=23MM, B=41MM, C=55MM, D=11.3MM, E=8.4MM

SFUST08: A=27.5MM, B=48.2MM, C=63.5MM, D=13.7MM, E=10.4MM

SFUST10: A=29.2MM, B=55.6MM, C=75.2MM, D=16.9MM, E=12.4MM

SFUST11: A=35MM, B=65MM, C=80MM, D=19MM, E=10MM

SFUST12: A=37.5MM, B=65MM, C=90MM, D=23.5MM, E=16.6MM

SFUST14: A=39.2MM, B=65MM, C=90MM, D=22.7MM, E=16MM

SFUST16: A=44MM, B=78.7MM, C=105.9MM, D=27MM, E=20.1MM

SFUST20: A=50.2MM, B=93.8MM, C=128.5MM, D=33.4MM, E=22.5MM

SFUST22: A=59.3MM, B=102MM, C=135MM, D=37MM, E=28.7MM

SFUST26: A=64.6MM, B=110MM, C=150MM, D=42.6MM, E=33.4MM

SFUST28: A=75.5MM, B=135MM, C=180MM, D=47.3MM, E=36.6MM

SFUTS32: A=85MM, B=170MM, C=235MM, D=59.3MM, E=42.6MM

SFUST35: A=85MM, B=160MM, C=230MM, D=66.3MM, E=47.2MM

SFUST38: A=90MM, B=165MM, C=230MM, D=65MM, E=47.2MM

SFUST44: A=110MM, B=240MM, C=310MM, D=73.2MM, E=51.2MM

SFUST52: A=150MM, B=310MM, C=380MM, D=83MM, E=61.2MM

SFUST56: A=180MM, B=340MM, C=430MM, D=96.3MM, E=70.5MM

SFUST64: A=180MM, B=340MM, C=460MM, D=114.2MM, E=82.8MM

Features

Brand
SECUREFIX DIRECT
Colour
Multicolour
Warranty
1 year(s)
Material
Steel
ManoMano Reference
ME27136441
