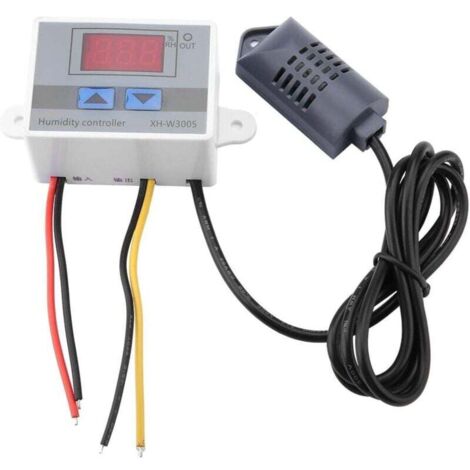

XH-W3005 Digital Hygrometer, Humidity Sensor, Humidity Sensor, XH-W3005 Digital Hygrometer Switch Controller Humidity Sensor 0.99% RH 12V/24V/220V (220V)

SPECIFICATION --- Model: XH-W3005; Weight: 68 g/2.4 oz; Input Voltage: 12 V, 24 V, 220 V (optional); Humidity Range: 00% ~ 99% RH; Humidity Control Accuracy: 0.1% RH; Load Power: 120W / 240W / 1500W; Output Type: Direct Output; Mounting Hole Spacing: 73 mm/2.9 inches; Size: 60*45*31 mm/2.4*1.8*1.2 inches
OPERATING INSTRUCTIONS --- With the thermostat connected to the circuit and the power supply, the digital display shows the starting temperature and the current humidity setting. Press the "up" button to display the starting temperature. Press and hold the "up" button for approximately 3 seconds, and the starting humidity reading will flash. This reading can be adjusted using the up and down buttons.
FACTORY RESET --- When powered on, press and hold the up and down buttons simultaneously. The digital display will show 888 and then automatically switch to the humidity detection value, thus restoring the factory settings.
NOTE --- The W3005 has a direct output. Please do not power on if the output terminal is not properly connected or is not connected at all. In case of a two-stage contact spark or careless touching of the wire, unnecessary problems may occur.
MULTI-VOLTAGE SELECTION --- 12V/24V/220V are optional. You can choose the voltage according to your needs.
