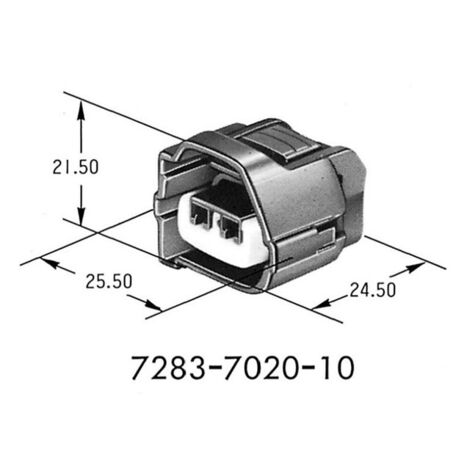

Yazaki 7283-7020-10 2 Way Automotive Connector - Female - 2.3II(090II) - Gray

Name: Yazaki 7283-7020-10 2 Way Automotive Connector - Female - 2.3II(090II) - Gray
Brand: YAZAKI
SKU: 7283-7020-10
Price: 3.86 GBP
Availability: InStock

Buying for your business?

Negotiated prices excl. VAT up to -20%

Create a pro account

Sold by AVB Negoce

Product information

Description

General description

The Yazaki 7283-7020-10 is a high-quality 2-way automotive connector designed for reliable connections in various applications. This female connector is part of the 2.3II(090II) family and is suitable for wire-to-wire, wire-to-board, and wire-to-device connections.

Technical specifications

Yazaki Part Number: 7283-7020-10

Connection Type: Wire to Wire / Wire to Board / Wire to Device

Male/Female: Female

Number of Poles: 2

Tab Width: 2.3 mm (0.090 inches)

Material: PBT

Color: Dark Gray

Allowable Current: 10A (Reference)

Low Level Contact Resistance: 3 milli ohm Max. (Initial)

Insulation Resistance: 100 Megohm Min. (at 500VDC)

Withstanding Voltage: 1000V AC (1 min.)

Temperature Range: -40 to 120 °C

Features

Brand
YAZAKI
IP rating
IP40
Number of pins
2
Type of connection
Automatic
ManoMano Reference
ME8911890
MMID
211972707198
Product code
7283-7020-10
EAN
3664369020146
