Z2FS10-23/V Double Throttle Check Valve

View description
£161.24
£161.24
total
£161.24
Secure Payment
  • Free delivery (postcode specific) *
Delivery method
  • At home between 10/08/2021 and 11/08/2021 for any order placed before 5 pm (Free shipping)
Sold by Zoro Tools
Product details
Features
  • productRef
    ME13814767
  • manufacturerSKU
    ZT1064263X
Description

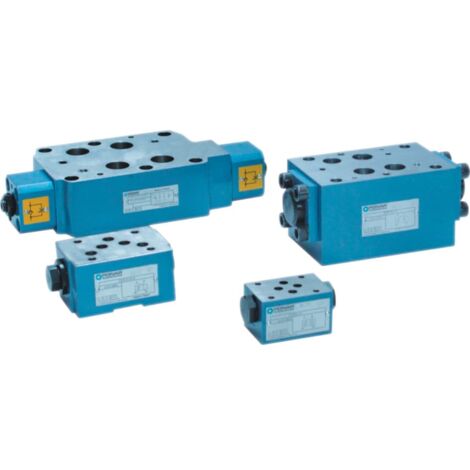

Z2FS10-23/V Double Throttle Check Valve

Throttle/check valve type Z2FS... is used to control
main flow rate (or pilot flow rate) in one direction of flow and to allow free flow in the opposite direction. The valve may be designed as double version (twin version - valve function is realized in two ports A and B) or single version (valve function is realized in one port A or B). The valve is applied to vertical stack mounting (sandwich plate) - generally is fitted between a subplate and a directional valve of the same nominal size and in this case is used to limit main flow rate (to control the speed of a receiver movement).
MPN:  Z2FS10-23/V Double Throttle Check Valve

Z2FS10-23/V Double Throttle Check Valve Attributes:

MFR Part No.: Z2FS10-5-3X/V
Maximum Pressure: 31.5MPa
Product Type: Check Valve
Size: 10
Temperature Range: -20 - 55°C
Thread Size: 1/2in
Thread Standard: BSP Parallel = G
Thread Type: Female
Weight Each: 2,000g
