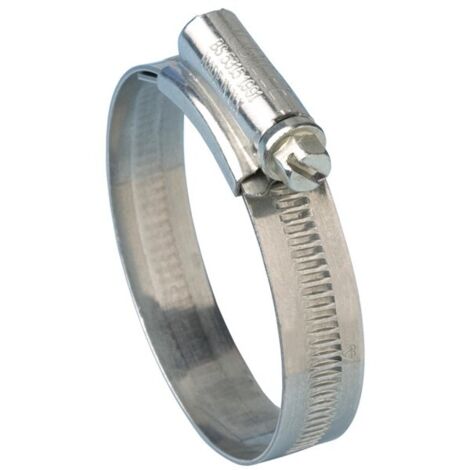

Jubilee 000MS 000 Zinc Protected Hose Clip 9.5 - 12mm (3/8 - 1/2in) JUB000

Buying for your business?

Negotiated prices excl. VAT up to -20%

Create a pro account

Sold by BuyaParcel and 2 other sellers

Product information

Description

General description

High-quality Jubilee® hose clips are designed for securing flexible hoses and metal tubes. Made from zinc-plated mild steel, these clips are suitable for various applications including automotive, agricultural, and ventilation systems. They feature a worm drive mechanism with a continuously threaded band for easy adjustment and a secure fit, while the smooth inner profile and rolled edges protect hoses from damage during installation and use.

Technical specifications

Size range: 9.5mm to 12mm (3/8 to 1/2 inch)

Band width: approximately 9.9mm

Band thickness: 0.762mm

Maximum pressure: 203 psi (bars)

Material: Mild steel with zinc plating for corrosion resistance

Standards met: BS5315:1991, DIN 3017

Fastening method: Slotted hex head screw (7mm A/F)

Compatibility and accessories

Compatible with standard hoses and tubes within the specified size range

Suitable for use with tools that fit a 7mm A/F hex screw

Installation

Position the clip around the hose or tube to be secured.

Insert the screw into a compatible screwdriver or wrench.

Turn the screw clockwise to tighten the clip until it fits securely without over-tightening.

Ensure the clip is evenly tightened for a secure and leak-proof connection.

Usage

Use in automotive, plumbing, and industrial applications to secure hoses and prevent leaks.

Adjust the clip size as needed for different hose diameters within the specified range.

Regularly check and tighten the clips to maintain a secure fit over time.

Other information

Jubilee® clips are Kite marked to BS5315 (1991) and the company is licensed to BS EN ISO 9001.

Features

Brand
TBC
Weight
1000 g
Pipe thread size
1/2" (15x21)
Max clamp diameter
12 mm
Mini clamp diameter
9.5 mm
Belt width
13 mm
Material
Steel
Pipe clamp use
Hose clamp
ManoMano Reference
ME1294216
MMID
876741354793
Product code
9JUBILEE/005
EAN
5016598001003
