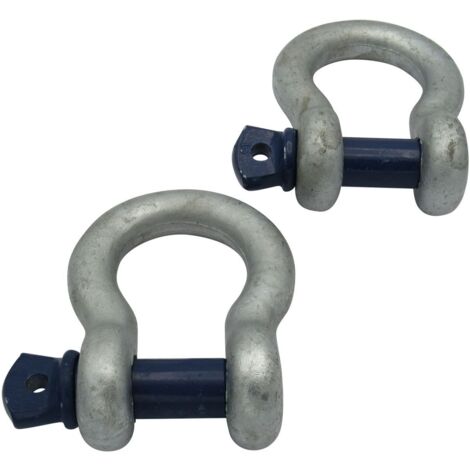

0.33 Ton Screw Pin Bow Shackles X2 - Lifting 330KG 3/16" x 1/4

Name: 0.33 Ton Screw Pin Bow Shackles X2 - Lifting 330KG 3/16" x 1/4
Brand: SECUREFIX DIRECT
SKU: SFUSSPB0.33
Price: 4.45 GBP
Availability: InStock

Sold by SecureFix Direct

Product information

Description

General description

0.33 Ton Screw Pin Bow Shackles are designed for lifting applications with a safe working load of 330 kg (0.33 tonnes). These shackles are manufactured from drop-forged steel, ensuring durability and strength. The body is hot-dipped galvanized for corrosion resistance, while the pin is painted for added protection. With a high safety factor of 5:1, these shackles provide optimum protection during use.

Technical specifications

Product Code: SFUSSPB0.33

Product Weight: 0.052 kg

Safe Working Load: 0.33 Tonnes

Body Finish: Hot Dipped Galvanised

Pin Finish: Painted

Safety Factor: 5:1

Conforms to: BS EN 13889: 2003 + A1: 2008

Dimensions:

A: 5.5 mm

B: 6 mm

C: 9 mm

D: 15 mm

E: 21 mm

F: 16 mm

G: 8 mm

Other information

Test Certificate Supplied (Sent Via Email)

Colour might vary from image

Features

Brand
SECUREFIX DIRECT
Material
Steel
Colour
Multicolour
Maximum load
330 kg
Warranty
1 year(s)
