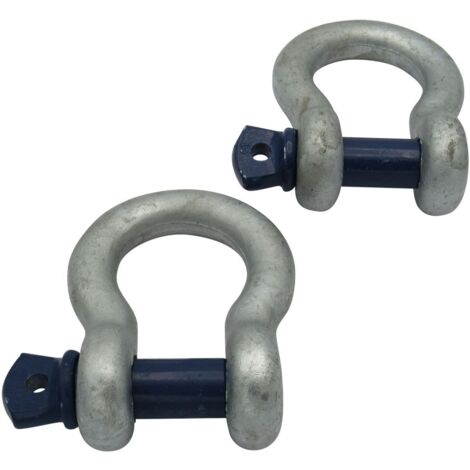

1 Ton Bow Shackles With Screw Pin X2 - Lifting 1000KG 3/8" x 7/16"

Sold by SecureFix Direct

You may also like

8mm STAINLESS STEEL 316 (A4) Long D shackle

8mm STAINLESS STEEL 316 (A4) Long D shackle

1
10mm STAINLESS STEEL 316 (A4) Long D shackle

10mm STAINLESS STEEL 316 (A4) Long D shackle

1
12mm STAINLESS STEEL 316 (A4) D shackle

12mm STAINLESS STEEL 316 (A4) D shackle

1
X10 25MM Zinc Plated Simplex Hooks - Dog Clip Lanyards Camping Craft Wim WomSECUREFIX DIRECT

X10 25MM Zinc Plated Simplex Hooks - Dog Clip Lanyards Camping Craft Wim Wom

1
Free delivery
Stainless Steel D Shackle with Allen Screw Head 6MM (Dee Rigging Flush Marine)SECUREFIX DIRECT

Stainless Steel D Shackle with Allen Screw Head 6MM (Dee Rigging Flush Marine)

Free delivery
D Shackles with Captive Pin 5MM X2 (316 Stainless Steel Marine Rigging Dee)SECUREFIX DIRECT

D Shackles with Captive Pin 5MM X2 (316 Stainless Steel Marine Rigging Dee)

Free delivery
Stainless Steel Ring Eye Bolt 6MM (Eyebolt Ringbolt Long Shank Marine Boat)SECUREFIX DIRECT

Stainless Steel Ring Eye Bolt 6MM (Eyebolt Ringbolt Long Shank Marine Boat)

Free delivery
Jaw Eye Swivel Shackle Stainless Steel 6MM (Marine Boat Sailing Pin 938KG)SECUREFIX DIRECT

Jaw Eye Swivel Shackle Stainless Steel 6MM (Marine Boat Sailing Pin 938KG)

Free delivery
Swivel Snap Shackle Stainless Steel 70MM (Hook Karabiner Quick Release Marine)SECUREFIX DIRECT

Swivel Snap Shackle Stainless Steel 70MM (Hook Karabiner Quick Release Marine)

Free delivery
M12 Lifting Eye Bolt - Self Coloured Collared Threaded Eyebolt BS4278 400KG 12MMSECUREFIX DIRECT

M12 Lifting Eye Bolt - Self Coloured Collared Threaded Eyebolt BS4278 400KG 12MM

Free delivery
Long D Shackle Stainless Steel 8MM (Marine Boat Rigging Sails Halyards Dee)SECUREFIX DIRECT

Long D Shackle Stainless Steel 8MM (Marine Boat Rigging Sails Halyards Dee)

Free delivery
Fixed Snap Shackle Stainless Steel 70MM (Marine Grade 316)SECUREFIX DIRECT

Fixed Snap Shackle Stainless Steel 70MM (Marine Grade 316)

Free delivery
X2 0.5 Ton Self Colour Large Dee Shackles With Screw Pin - 500KG D High Tensile Lifting TowingSECUREFIX DIRECT

X2 0.5 Ton Self Colour Large Dee Shackles With Screw Pin - 500KG D High Tensile Lifting Towing

Free delivery
Stainless Steel Ring Eye Bolt 10MM (Eyebolt Ringbolt Long Shank Marine Boat)SECUREFIX DIRECT

Stainless Steel Ring Eye Bolt 10MM (Eyebolt Ringbolt Long Shank Marine Boat)

Free delivery
M18 Lifting Eye Bolt - Self Coloured Collared Threaded Eyebolt BS4278 1 Ton 18MMSECUREFIX DIRECT

M18 Lifting Eye Bolt - Self Coloured Collared Threaded Eyebolt BS4278 1 Ton 18MM

Free delivery
Standard Galvanised Canal Windlass - Boat Handle Lock Key Waterways River Trust Double RotatingSECUREFIX DIRECT
#1 in sales

Standard Galvanised Canal Windlass - Boat Handle Lock Key Waterways River Trust Double Rotating

1
Free delivery
2.75 Ton Galvanised Large Bow Shackle With Screw Pin - BS3032 2750KG Lifting Towing TestedSECUREFIX DIRECT

2.75 Ton Galvanised Large Bow Shackle With Screw Pin - BS3032 2750KG Lifting Towing Tested

Free delivery
Safety Pin Bow Shackle 150 Ton (Lifting Galvanised Large 150000KG)SECUREFIX DIRECT

Safety Pin Bow Shackle 150 Ton (Lifting Galvanised Large 150000KG)

Free delivery
6mm STAINLESS STEEL 316 (A4) Long D shackle

6mm STAINLESS STEEL 316 (A4) Long D shackle

1
Porthole Boat Window Oval (Ship Marine Narrowboat Yacht Port Hole)SECUREFIX DIRECT

Porthole Boat Window Oval (Ship Marine Narrowboat Yacht Port Hole)

Free delivery

Compare with similar items

Product information

Description

General description

1 Ton Bow Shackles with Screw Pin are designed for lifting applications with a safe working load of 1 tonne (1000 kg). Manufactured from drop-forged steel, these shackles feature a hot-dipped galvanized body and a painted pin, ensuring durability and resistance to corrosion. With a high safety factor of 5:1, they provide optimum protection during use.

Technical specifications

  • Product Code: SFUSSPB1
  • Product Weight: 0.28 kg
  • Safe Working Load: 1 tonne
  • Body Finish: Hot Dipped Galvanised
  • Pin Finish: Painted
  • Safety Factor: 5:1
  • Conforms to: BS EN 13889: 2003 + A1: 2008
  • Dimensions:
  • A: 10 mm
  • B: 11 mm
  • C: 16 mm
  • D: 25 mm
  • E: 35 mm
  • F: 26 mm
  • G: 13 mm

    • Other information

    Test Certificate Supplied (Sent Via Email). *Colour might vary from image*.

    Features

    • Brand
      SECUREFIX DIRECT
    • Material
      Steel
    • Maximum load
      1000 kg
    • Warranty
      1 year(s)
    • ManoMano Reference
      ME27130641
