10 Pieces Single End Cap 1000 Dan kg End Cap for Aircraft Rails Lashing Ring for Lashing Rail - RW Lifting Ring
You may also like
Compare with similar items
Product information
Description
FUNCTIONALITY:

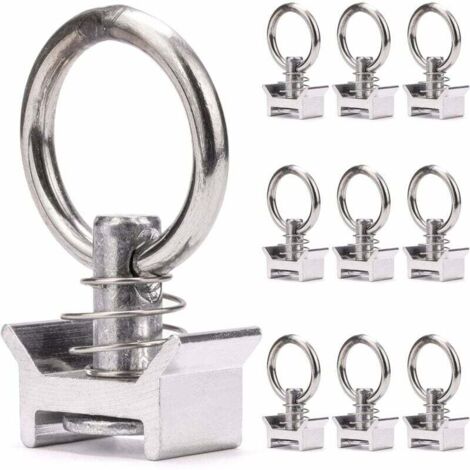

Set of 10 End Caps 1000 daN/kg with Ring and Aluminum Base Body for Airline Rails
Our most popular end fitting for aircraft rails. These are, for example, in caravans, vans, trucks, or trailers.
The fitting is inserted into the lashing rail and locked with a spring by loosening the bolt. Lashing strap hooks can be hooked onto the ring. Looping the straps is also possible.
The end cap can be easily moved into the rail within the drilling template. A very useful tool.
Industrie Planet stands for responsible load securing: whether you're a motorhome driver or a truck driver, with us you always get quality very good and constant.
PRODUCT INFORMATION:
Load capacity: 1000 kg / 1000 daN / 1 ton.
Plug-in bolts with return spring (lifting distance 11 mm).
Diameter plate bottom: 19.30 mm.
Outer ring diameter: 29 mm, inner 28 mm.
Ring thickness: 5 mm.
Base body aluminum.
Dimensions of base element lower edge: 26.35 x 12.50 mm.
Dimensions of base element upper edge: 33.70 x 12.50 mm.
Required hole diameter of the airline rail: 20 mm.
For airline rails, eg in the truck, trailer, van.
PACKAGE INCLUDED:
10* Fitting at one end
Features
- BrandIKODM
- Pcs per pack10
- Height15 cm
- Width2 cm
- MaterialAluminium
