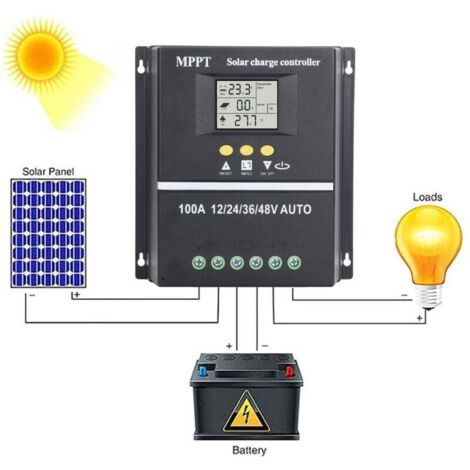

100A MPPT Solar Charge Controller 12V 24V 36V 48V LCD Display Battery Smart Regulator Max 100V Dual USB Input
Sold by re-green GmbH and 1 other seller
Product information
Description
Note: This is a high-quality MPPT+PWM compatible solar controller, which is not 100% MPPT, but whose tracking efficiency is no less than 99.5%. Automatic recognition of 12V/24V/36V/48V; dual 5V USB charging ports Multifunction LCD screen with backlight and clock display, 7 operating modes: discharge mode, light control mode, light and timer control mode, universal control mode, manual control mode, timer control mode. MPPT solar controller with voltage, discharge current, overcharge, and temperature protection. Specification Item Type: Solar Charge Controller Material: ABS Voltage: 12V, 24V, 36V, 48V Adaptive Rated Current: 100A Maximum PV Voltage: 100V Maximum Solar Input (Voc): 15-25V (12V battery); 30-50V (24V battery); 45-75V (36V battery); 60-100V (48V battery) Maximum Photovoltaic Input Power: 1200W (12V battery); 2400W (24V battery); 3600W (36V battery); 4800W (48V battery) How to Use 1. Discharge Method: Discharge must not be allowed under any circumstances. 2. Light control mode: When the controller detects night, it delays for ten minutes and then begins discharging; when it detects day, it waits ten minutes and then stops discharging. 3. Light and delay control mode: When the controller detects night, it delays for ten minutes before beginning discharging and counting down (if the timer stops at 0), discharging will stop. The maximum delay is 23 hours and 59 minutes. 4. General control method: Always maintain discharging without any faults. 5. Manual control mode: Use "▼" to check if discharging is necessary. 6. Synchronization control method: Regularly turn the discharge on and off. 7. Test Mode: Identical to the lighting and delay control modes, but only loses ten minutes of delay. 8. The discharge controller is always under low-voltage protection. The touchscreen "▼" remains active for 5 seconds and the discharge continues. Package List 1x Controller Compatible with charging Seal, GEL, Flooded, and LiFePO4 batteries
Features
- BrandSNQ
- Amperage100 A
- MaterialAcrylonitrile butadiene styrene (ABS)
- Weight200 g
- Voltage24 V
