1/2 inch float ball valve, automatic water level control tank, stainless steel floating ball valve

【Automatic control】The float valve controls the flow rate and the opening and closing of the inlet pipe through the floating of the ball. When the water level reaches a certain level, the water injection will be stopped; When the water level drops to a certain limit, water will be injected automatically.

【G1/2 inch】 G1/2 inch male thread inlet, suitable for most types of water pipes, easy to install and adjust, and has a beautiful appearance, small size, practicality and easy installation

【Three-hole valve】 This float valve replaces the traditional float ball and can be used in high water tanks, swimming pools, industrial water towers and other systems

【Stainless steel valve】 The float valve controls the flow and opening and closing of the inlet pipe through ball floats, with automatic control, low self-refill and automatic water shut-off function

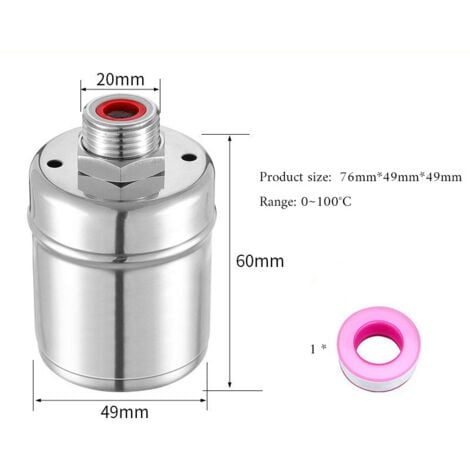

【Specifications】 Thread size: G1/2 inch - maximum installation inclination: 30 degrees - working pressure range: ≤ 1.0 MPa - domestic tap water pressure: 0.3-0.5MPa - the use of siphon pipes for water supply should ensure that the drop water level is higher than 80cm/31.5inch, otherwise the water yield will be affected.

Stainless steel shell

The stainless steel material ensures a delicate surface and beautiful appearance, while being more sturdy and durable

Large displacement

The floating ball valve is small and does not take up space, and can effectively increase the water flow, which is more than the traditional floating ball valve.

Friction and impact resistance

The hard shell effectively increases the service life of the float valve

Solid floating core

The floating core design increases the water level sensor control for the control valve and makes the water refill more sensitive.

Instructions for use

1. Applicable water pressure range: 1.2-10kg (please use under reasonable circumstances).

2. The product should be installed vertically on a horizontal plane, and the float valve should face downward when installing

3. Please fix the water pipe on the horizontal surface first, and then install the product on the water inlet pipe

4. When using, the shut-off valve of this product must be fully opened

5. If two float valves are installed in a swimming pool, they must be kept at the same level

6. Please clean impurities from the pipe during installation to prevent impurities from blocking the ball valve.

7. When the product is installed indoors, water droplets will form at the bottom of the ball valve, which is a normal phenomenon.
