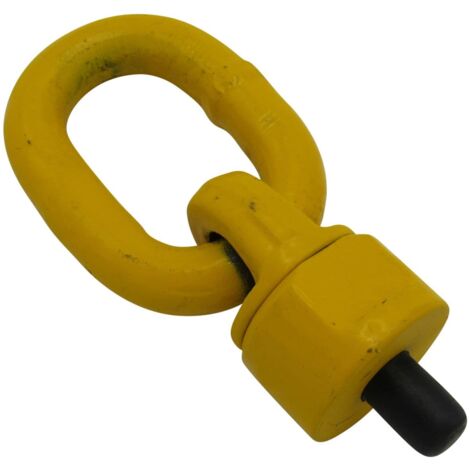

12MM Grade 80 1 Ton Swivel Eyebolt With Link - 0.5T Lifting Rotating Hoisting Point

Product out of stock

Product information

Description

General description

These 12MM Grade 80 Swivel Eyebolts with Link are high-quality lifting gear manufactured from Grade 80 steel, known for its high strength and durability. The swivel feature allows for loading from various angles, providing multiple lifting positions and versatility in demanding environments.

Technical specifications

  • Safe Working Load (SWL): 1 ton @ 0 degrees, 0.5 ton @ 90 degrees
  • Material: Grade 80 (g80)
  • Finish: Yellow (may vary)
  • Factor of safety: 4:1
  • Conforms to: BS EN 1677
  • Product Codes and Specifications:
  • SFSEBL08: 0.6T @ 0° / 0.3T @ 90°, Dimensions: A=8mm, B=54mm, C=12mm, D=16mm, E=78mm, F=52.5mm, G=29mm, H=14mm, I=14mm
  • SFSEBL10: 0.9T @ 0° / 0.45T @ 90°, Dimensions: A=10mm, B=54mm, C=19mm, D=15mm, E=79mm, F=51.5mm, G=31mm, H=36mm, I=14.5mm
  • SFSEBL12: 1T @ 0° / 0.5T @ 90°, Dimensions: A=12mm, B=54mm, C=17mm, D=15.5mm, E=80mm, F=52mm, G=29mm, H=36mm, I=14mm
  • SFSEBL16: 2T @ 0° / 1.12T @ 90°, Dimensions: A=16mm, B=53mm, C=19mm, D=16.5mm, E=80mm, F=52mm, G=29mm, H=36mm, I=14mm
  • SFSEBL20: 4T @ 0° / 2T @ 90°, Dimensions: A=20mm, B=69mm, C=30mm, D=19.5mm, E=102mm, F=70mm, G=32.5mm, H=49.5mm, I=16mm
  • SFSEBL24: 6.3T @ 0° / 3.15T @ 90°, Dimensions: A=24mm, B=80mm, C=30mm, D=21.5mm, E=120mm, F=84mm, G=36.5mm, H=57mm, I=18mm
  • SFSEBL30: 10.6T @ 0° / 5.3T @ 90°, Dimensions: A=30mm, B=98mm, C=35mm, D=23mm, E=122mm, F=82mm, G=38mm, H=66mm, I=19mm
  • SFSEBL36: 11.8T @ 0° / 8T @ 90°, Dimensions: A=36mm, B=112mm, C=49mm, D=25mm, E=157mm, F=114mm, G=51.5mm, H=80mm, I=22mm

    • Other information

  • Test Certificate will be supplied via email

    • Features

    • Brand
      SECUREFIX DIRECT
    • Width
      1.2 cm
    • Material
      Steel
    • Colour
      Yellow
    • Maximum load
      500 kg
