12pcs 12mm Waterproof Momentary Push Button SPST ON/OFF 3A/3V-5V-9V-12V-24V-230VAC, Unlockable Round Button, for Car Trumpet, PC, Table Lamp, Home Doorbell

Name: 12pcs 12mm Waterproof Momentary Push Button SPST ON/OFF 3A/3V-5V-9V-12V-24V-230VAC, Unlockable Round Button, for Car Trumpet, PC, Table Lamp, Home Doorbell
Brand: DEWDAT
SKU: LYUK-5784
Price: 8.58 GBP
Availability: InStock

Sold by My Shiop GB

Product information

Description

General description

The 12pcs 12mm Waterproof Momentary Push Button is designed for various applications including car trumpets, PCs, table lamps, and home doorbells. This set includes a variety of colors to suit different needs.

Technical specifications

Material: Plastic and metal

Plug diameter: 12mm

Push button hole thread: 0.75mm

Type of operation: Momentary

Poles: SPST

Rated current: 3A

Rated voltage: 3V-5V-9V-12V-24V-230VAC

Dielectric strength: > 1500VAC / 1min

Electrical life: > 10000 cycles

Ambient temperature: -25 ~ +85°C

Contact resistance: <50mΩ

Insulation resistance: > 100mΩ

Other information

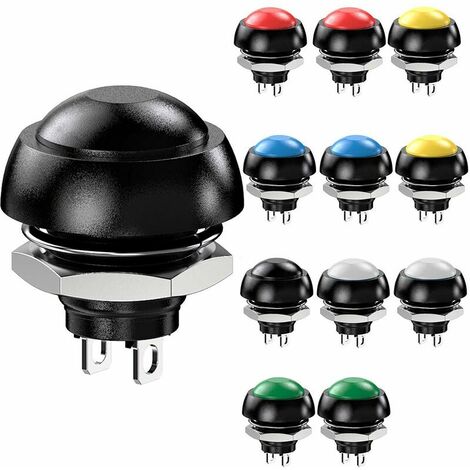

The package contains: 2 x red push button, 2 x yellow push button, 2 x blue push button, 2 x green push button, 2 x black push button, 2 x white push button.

Note: The terminals are very small, you must be very careful when soldering the wires to them.

Features

Brand
DEWDAT
Colour
Green
NF certification
NF230
Control button actuation
Push button
Amperage
3 A
Material
Plastic
Pcs per pack
12
Voltage
12 V
ManoMano Reference
ME84678988
MMID
519980074125
Product code
LYUK-5784
EAN
9455917514248
