Product information

Description

General description

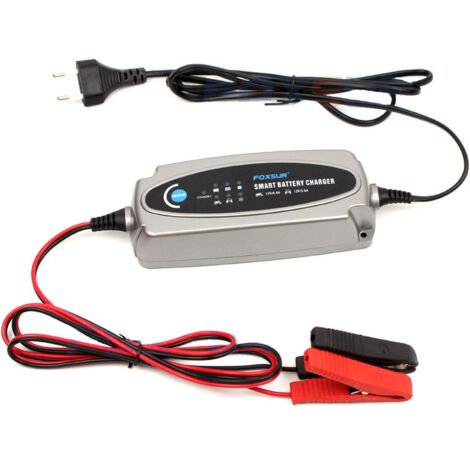

This 12V 3.6A Battery Charger is designed for both car and motorcycle batteries, featuring a microprocessor control for enhanced performance. It offers a fully automatic 5-stage charging process that protects your battery from overcharging, allowing you to leave it connected indefinitely. This charger is suitable for various battery types, including calcium, gel, AGM, and wet batteries, and can help restore drained and sulfated batteries.

Technical specifications

Input Voltage: 100-240V AC, 50-60Hz

Rated Output: 12V DC, 0.8A/3.6A

Minimum Start Voltage: 8.0V

Charging stages: 5 (Desulfation, Bulk, Absorption, Float, Stop)

Thermal protection: 65°C +/- 5°C

Efficiency: approximately 85%

Dimensions (L × W × H): 170 × 65 × 40 mm

Weight: 450g

Installation

AC cable length: 1.5m

DC cable length: 1.4m

Usage

Desulfation: Breaks down sulfation in batteries left flat for long periods.

Bulk: Charges the battery at maximum rate until approximately 60% charge.

Absorption: Slows charging to allow the battery to reach 80% charge.

Float: Maintains the battery at 100% without overcharging.

Stop: The charger ceases charging and cuts off output.

Other information

Switch Mode Technology: Yes

Polarity Protection: Yes

Output Short Protection: Yes

Non-Battery Link Protection: Yes

Over Voltage Protection: Yes

Over Temperature Protection: Yes

Cooling: Natural Convection

Reverse connection protection: Yes

Output short circuit protection: Yes

Beautiful box for packaging.

Features

Brand
TINOR
Voltage
12 V
Certification body
CE
Starting function (boost)
Yes
Height
4 cm

Jump lead buying guide

Jump leads are an invaluable piece of kit in the event of a flat car battery. Select them according to your engine type, the quality of their clips, the amperage of your battery and the length of the cables. You will also have to choose a cable cross section; the most common options are 25 mm², 35 mm² or 50 mm².

12V 3.6A Battery 5-Stage Car and Motorcycle Battery Charger NPTERBL
