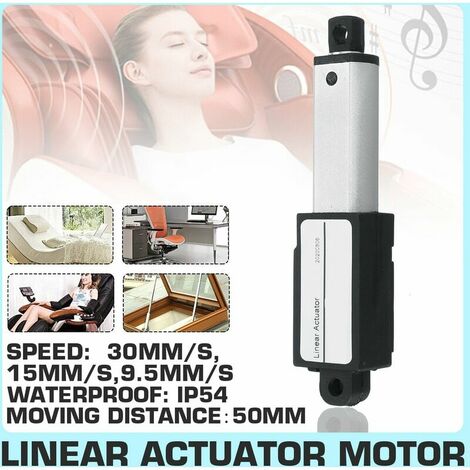

Linear Actuator 12V DC 50mm Stroke Electric Window Opener Linear Motor IP54 (15mm / s)

Product information

Description

General description

This miniature linear actuator is designed for various applications including industrial machinery, agriculture, construction, clean sweep vehicles, ships, cargo handling, and more. It serves as an energy-efficient alternative to hydraulic and pneumatic products.

Technical specifications

Stroke distance: 50 mm

Material: Aluminum alloy

Speed options: 30 mm/s, 15 mm/s, 9.5 mm/s

Input voltage: 12V DC

Duty cycle: 10%

Ambient temperature range: -10 °C to +50 °C

Protection class: IP54

Noise level: < 50 dB

Installation

Ensure that screws are not too long to avoid damaging internal components.

When soldering connections, maintain a soldering iron temperature of 340 °C ± 40 °C for no more than 3 seconds.

Usage

Can be used to push, pull, lift, or lower various objects.

Common applications include TV lift tables, massage beds, electric beds, electrical equipment, micro-devices, electric sofas, camera frames, and cameras.

Before use, verify that the motor voltage is correct and that the power supply current is sufficient.

Avoid storing or using in high-temperature or humid environments, and do not expose to corrosive gases.

Other information

Packaging includes: 1 × linear actuator motor.

Note: Support and controllers must be purchased separately.

Features

Brand
BEARSU
Pcs per pack
1 part(s)
IP rating
IP54
Material
Aluminium
Motor sold separately
Yes
Voltage
12 V
ManoMano Reference
ME62231337
MMID
818884446748
Product code
PYP-9993
EAN
7374735655679
