12V Time Delay Relay Module Cycle Timer Dual Digital LED Display

~~£32.39~~

Of which environmental contribution £0.10 including VAT.

Sold by A10 ROOFING (LONDON) LIMITED

Product information

Description

General description

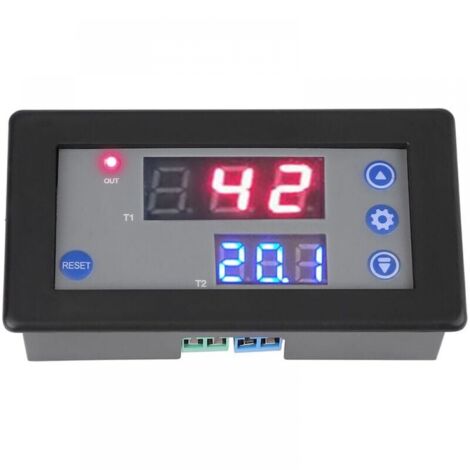

The 12V Time Delay Relay Module Cycle Timer features a dual digital LED display and offers a versatile timing range of 0-999 seconds, 0-999 minutes, and 0-999 hours. This module is designed for various applications including timing switches, delay controls, cycle timing, and intermittent timing, making it suitable for a wide range of projects.

Technical specifications

Voltage: DC 12 V

Maximum working current: 10A

Maximum power: 1500W

Product size: 3 x 9.7 x 5.2 cm / 1.1 x 3.8 x 2.0 in

Weight: 70g

Timing range: 0-999 seconds, 0-999 minutes, 0-999 hours

Installation

Press the SET key to enter the time setting mode; the digital display will flicker.

Use the plus or minus buttons to adjust the timing for T1 and T2.

After setting the time, wait 5 seconds for the module to automatically save the data.

Press SET to enter parameter setting mode, where users can select between two sets of parameters: P0 and P1.

Usage

In P0, users can set the timing mode as follows:

P0--0: Timing mode is 0-999 seconds

P0--1: Timing mode is 0-999 minutes

P0--2: Timing mode is 0-999 hours

P1--0: Time relay T1 (time delay T1)

P1--1: Time relay T1 trips (time delay T1)

P1--2: Time relay after T1, then time delay T2

P1--3: Time relay T1 releases, then time delay T2

P1--4: Time relay after T1, then time delay T2, repeat cycle

P1--5: Time relay T1 releases, then time delay T2, repeat cycle

Other information

Package includes: 1 x Time Delay Relay

Note: Manual measurement may allow for a 1-59 cm error. Color differences may occur due to lighting and screen variations.

Features

Brand
CYSLMUK
Height
52 mm
Weight
70 g
Power
1500 W
Voltage
12 V
