12V/24V 8A Smart Battery Charger, Battery Charger with Trickle Charge and Automatic Function

General Description

The smart battery charger is designed to provide efficient and safe charging of 12V and 24V lead-acid batteries, with a capacity ranging from 2AH to 150AH. It is equipped with a digital display that shows the voltage, current, battery capacity, and temperature, allowing for easy monitoring of the charging status.

Technical Specifications

• Battery Type: Lead-acid batteries, including Calcium, GEL, AGM, Wet, EFB
• Input Voltage: 100-240V AC, 50-60Hz
• Nominal Output: 12V 8A / 24V 4A
• Minimum Starting Voltage: 2.0V
• Battery Capacity Range: 6-150Ah
• Thermal Protection: 65°C +/- 5°C
• Efficiency: Approximately 85%
• Dimensions (L×W×H): 170×98×58mm
• Weight: 560g

Compatibility and Accessories

Compatible with most lead-acid batteries. Do not use to charge lithium batteries.

Installation

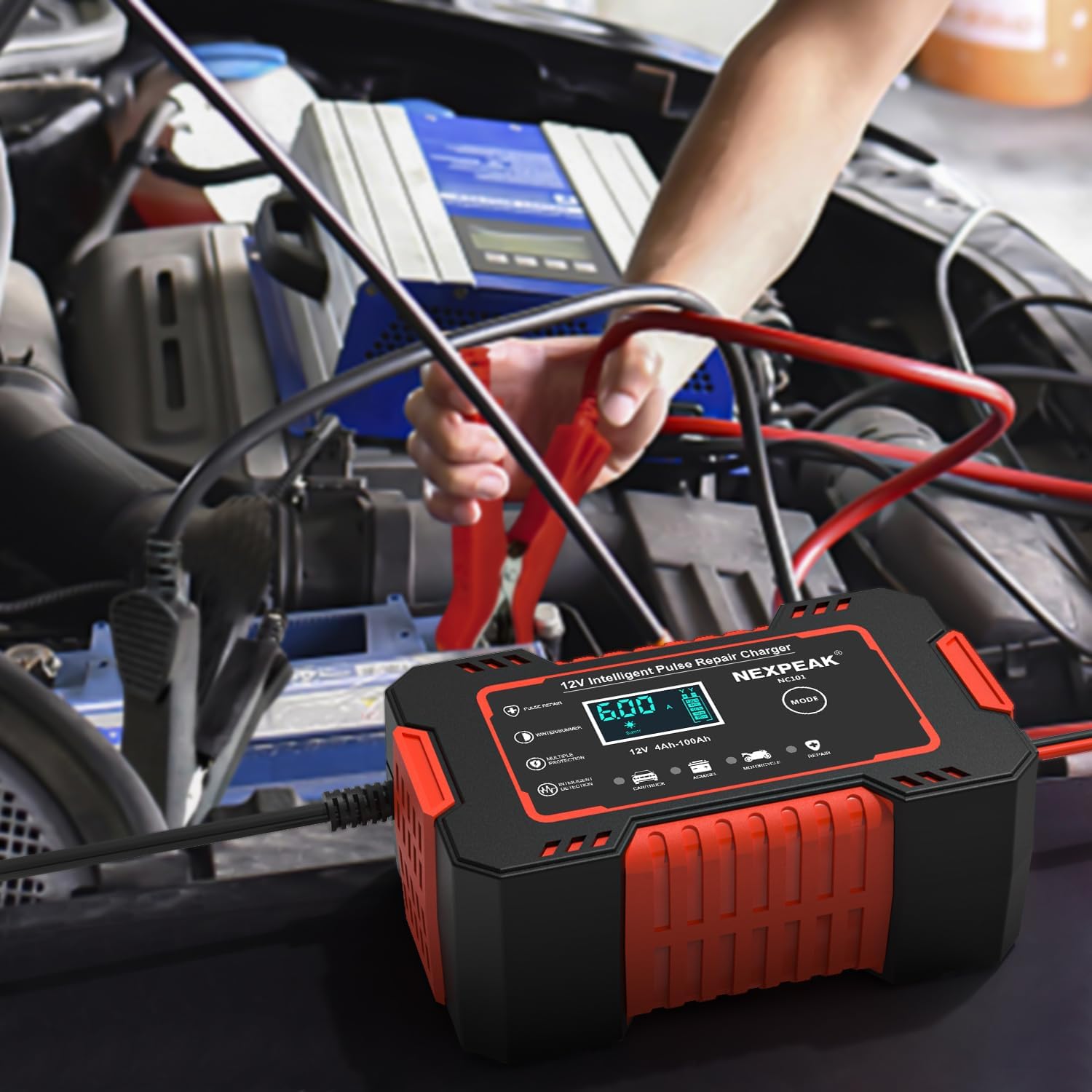

Connect the red clip to the positive (+) terminal of the battery and the black clip to the negative (-) terminal. The charger will start automatically without requiring any further adjustments.

Usage

This charger features three-stage automatic charging technology, protecting the battery from overcharging. It can remain connected indefinitely without risk of overcharging. In addition, it offers protection against low voltage, overvoltage, overcurrent, short circuits, and overheating.

Other Information

The flame-retardant ABS casing ensures increased durability and safety, protecting against corrosion and electric shock.
