Product information

Description

General description

The smart battery charger is designed to provide efficient and safe charging of 12V and 24V lead-acid batteries, with a capacity ranging from 2AH to 150AH. It is equipped with a digital display that shows the voltage, current, capacity battery voltage, and temperature, allowing easy monitoring of the state of charge.

Technical specifications

Battery Type: Lead Acid Batteries, including Calcium, GEL, AGM, Wet, EFB

Input Voltage: 100-240V AC, 50-60Hz

Rated Output: 12V 8A / 24V 4A

Minimum Cranking Voltage: 2.0V

Battery Capacity Range: 6-150Ah

Thermal Protection: 65°C +/- 5°C

Efficiency: Approx. 85%

Dimensions (L×W×H): 170×98×58mm

Weight: 560g

Compatibility and accessories

Compatible with most lead-acid batteries

Do not use to charge lithium batteries

Installation

Connect the red clip to the positive (+) terminal of the battery

Connect the black clip to the negative (-) terminal

The charger will start automatically without the need for additional adjustments

Usage

This charger features three-stage automatic charging technology, protecting the battery from overcharging

It can remain connected indefinitely without the risk of overcharging

Offers protections against low voltage, over voltage, over current, short circuit, and overheating

Other information

The flame-retardant ABS shell ensures increased durability and safety, protecting against corrosion and electric shock

Features

Brand
COOCHEER
Voltage
12 V
Certification body
CE
Starting function (boost)
Yes
Trickle charging function
Yes

Jump lead buying guide

Jump leads are an invaluable piece of kit in the event of a flat car battery. Select them according to your engine type, the quality of their clips, the amperage of your battery and the length of the cables. You will also have to choose a cable cross section; the most common options are 25 mm², 35 mm² or 50 mm².

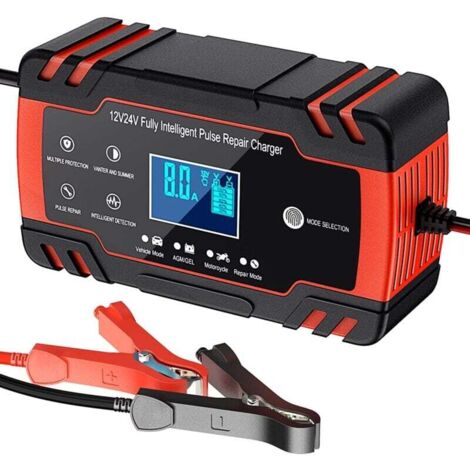

12V/24V 8A Smart Battery Charger, Battery Maintainer & Automatic Repair Function Portable with LCD Display, for Car Motorcycle Truck, AGM, Gel, Wet, SLA(BlackRed)
