General description

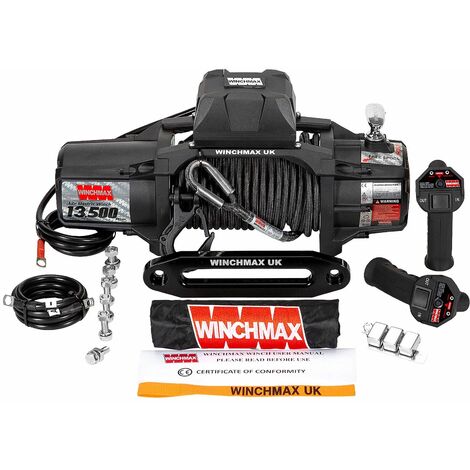

The 13,500lb (6,123kg) SL Series Military Grade 12V Winch is designed for heavy-duty applications, making it ideal for recovery trucks and 4x4 vehicles up to 3.5 tons. This winch features a robust construction with military-grade anti-corrosion measures and is equipped with advanced technology for reliable performance.
Technical specifications
- Single Line Rated Pull: 13,500lb (6,123kg)
- Motor: 12V 6.8hp series wound
- Control: Twin wireless remote controls with long-range capability
- Gear Train: 3 stage planetary
- Gear Reduction Ratio: 265:1
- Clutch: Sliding ring gear
- Braking Action: Automatic in the drum
- Drum Size: Diameter 64mm (2.5”), Length 224mm (8.82”)
- Drum Finish: Galvanized
- Cable: 25m x 10mm Armourline synthetic rope
- Hook: Tactical clevis hook 3/8 inch, black
- Battery: Recommended 650CCA minimum for winching
- Battery Leads: 2 gauge, 1.83m (72”) 25mmsq - 5.6mm diameter
- Winch Finish: Matt black (low light paint)
- Weight (GW): 30kg (66lb)
- Overall Dimensions (LxWxH): 536 x 160 x 218mm (21.3” x 6.3” x 8.6”)
- Mounting Bolt Pattern: 10.00”±0.015” x 4.50”±0.010” (254 x 114.3mm)
- Motor Current: 65-500A
- No Load Line Speed: 7.5m/min (24.6 ft/min)
- Waterproof: IP67 Rating
Usage
This winch is suitable for a variety of heavy-duty applications, including vehicle recovery and towing. It is designed to handle loads up to 13,500lb (6,123kg) and is equipped with features that enhance its usability in challenging environments.
Other information
Industry-leading lifetime warranty on mechanical components and 3 years warranty on electrical components. VAT invoice provided with every sale.
